Random back opener request

UNLucky
Posts
179
Likes
81

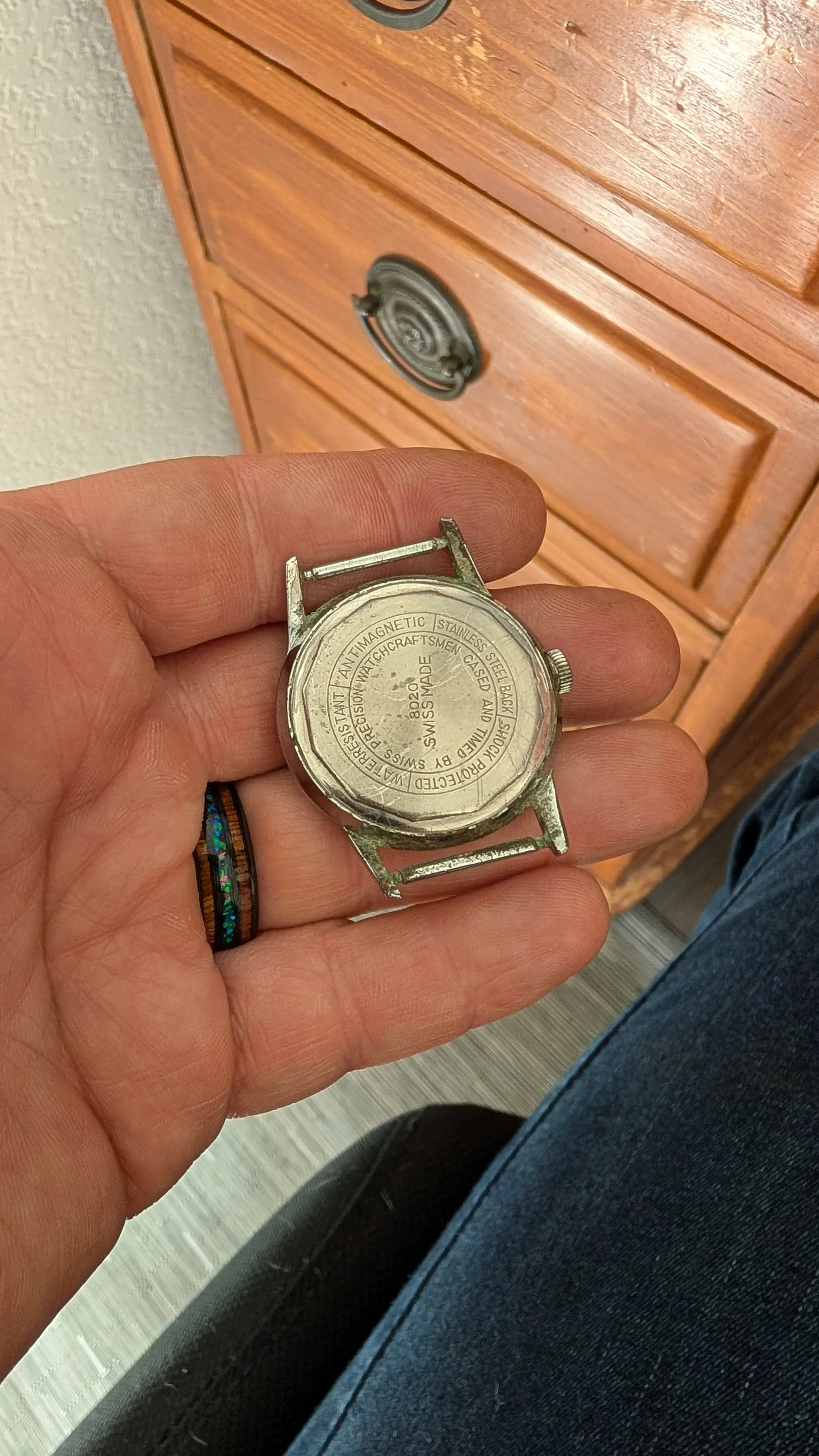

Does anyone have a 3d print model I can print to open this bloody watch!? I have tried most everything I have on hand, I don't even know what to Google to look up the correct tool. I think it's corroded shit as well so that's even better. 🤦🏼‍♂️

Dan S
Posts
23,127
Likes
51,629
A three prong opener will work, but if it's really stuck, obviously it's more difficult. You can always try the super-glue and hex nut approach.

dsio
Posts
33,160
Likes
37,892

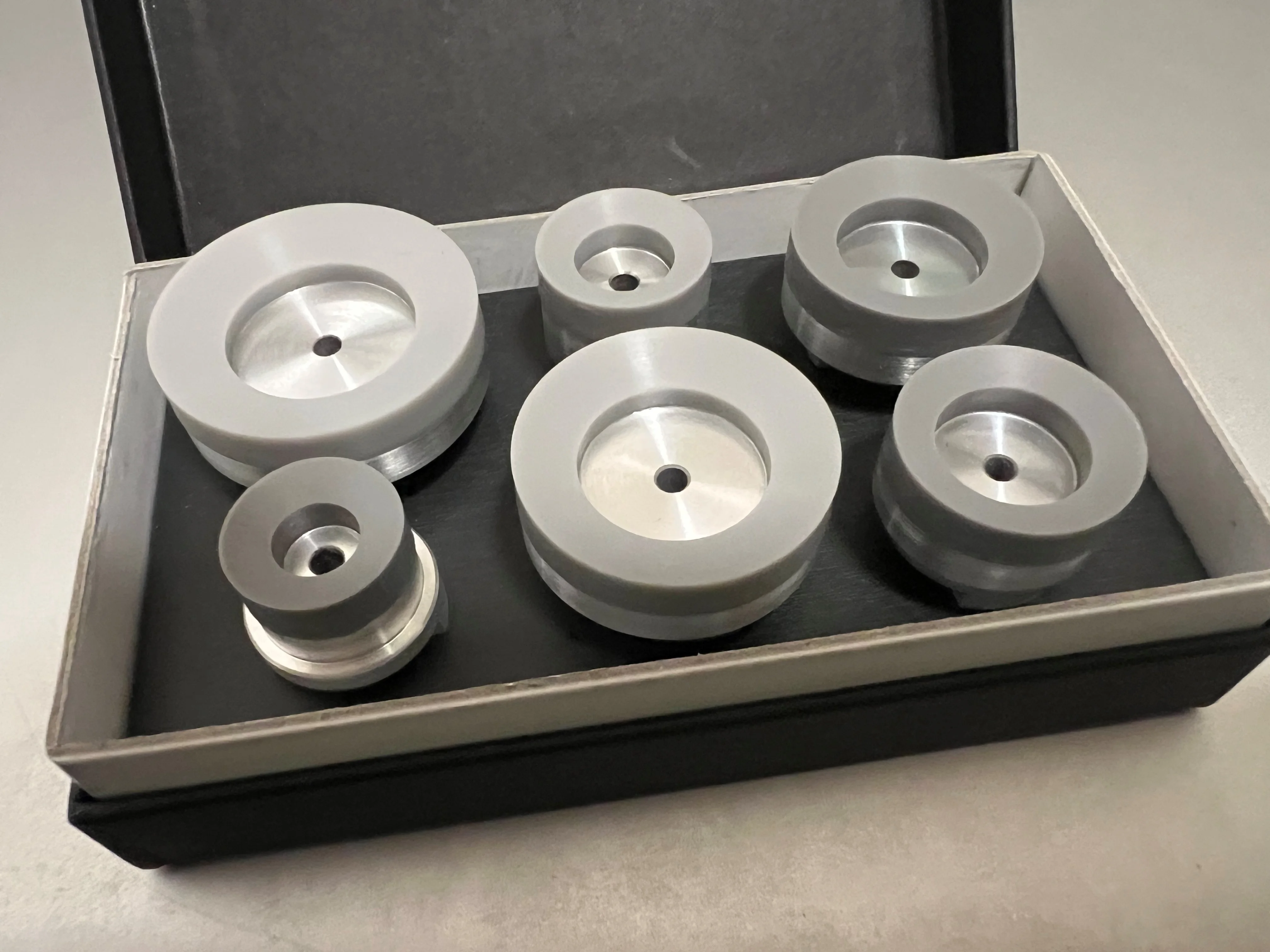

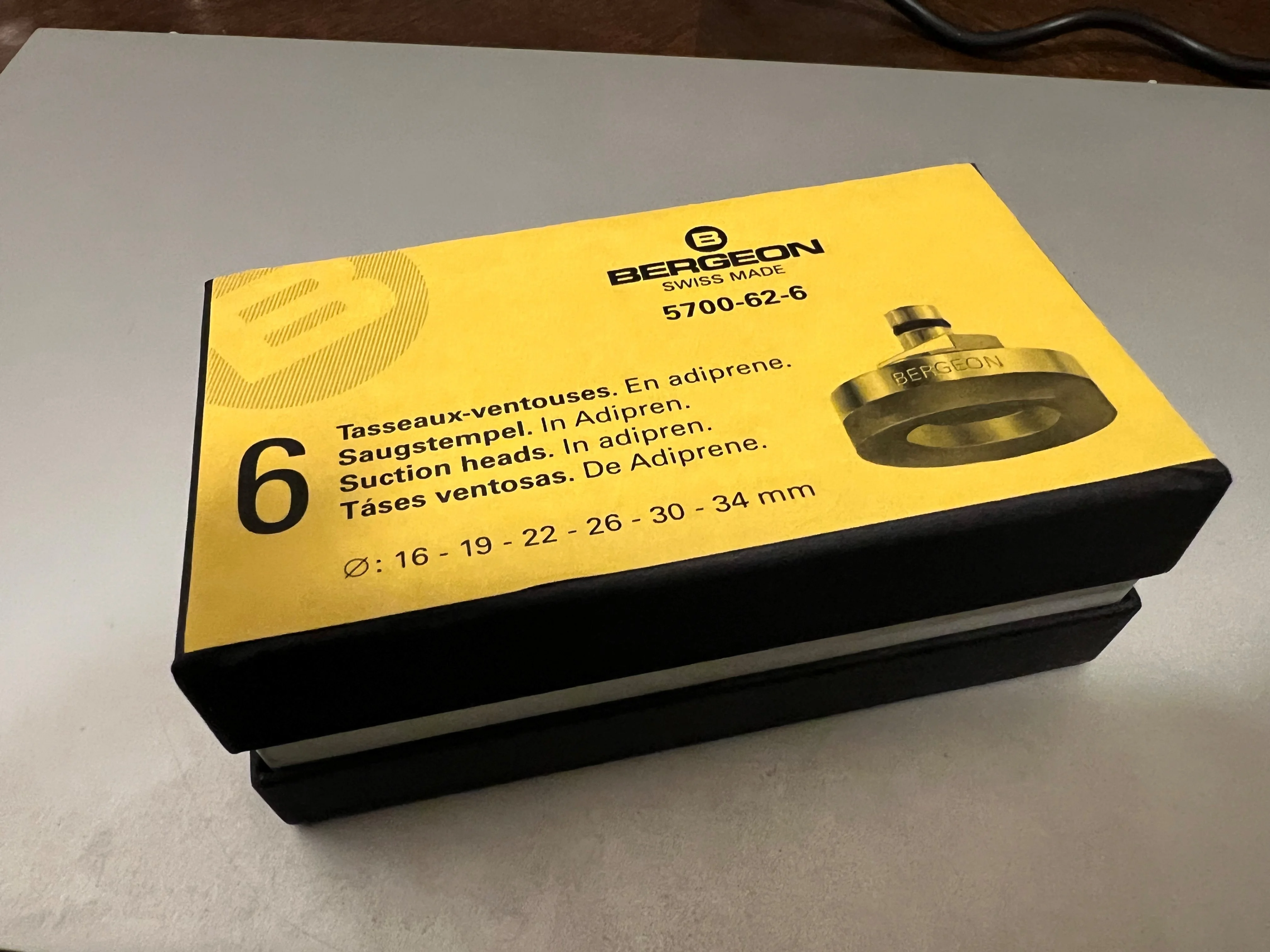

That type of back is a really good candidate for the rubber ball method, it does the least amount of damage when they're really stuck too

https://www.ebay.com/itm/123622036748

This website may earn commission from Ebay sales.
JimInOz
Posts
17,465
Likes
36,611
Dan S Dan S
super-glue and hex nut approach.
I agree.

No 3D printed tool will work due to the angles and edges.

If you don't have a set of Breitling openers, the superglue/nut works very well. The caseback and nut just get soaked in acetone to remove the nut. I've used it a few times with no problems.

Meme-Dweller
Posts
2,428
Likes
3,784
Don't know anything about this watch, but I hope you made sure it's actually a screwdown caseback and not just a snap-on caseback that's in the shape of something that looks like it would screw down.

UNLucky
Posts
179
Likes
81
dsio dsio
That type of back is a really good candidate for the rubber ball method, it does the least amount of damage when they're really stuck too

https://www.ebay.com/itm/123622036748
It's too tight for the rubber ball, that's my default. I really think it's cranked down or corroded closed.

This website may earn commission from Ebay sales.
UNLucky
Posts
179
Likes
81
Vercingetorix Vercingetorix
Crescent wrench perpendicular to the case back.
Not a horrible idea, but the lip is really thin and I'm not sure I can get a grip. I'll carefully give it a shot.

UNLucky
Posts
179
Likes
81
Meme-Dweller Meme-Dweller
Don't know anything about this watch, but I hope you made sure it's actually a screwdown caseback and not just a snap-on caseback that's in the shape of something that looks like it would screw down.
I'm scared to pry, but it very much looks like a screw down. I'll give it a probe with the case back opener and see if it fooled us all.

UNLucky
Posts
179
Likes
81

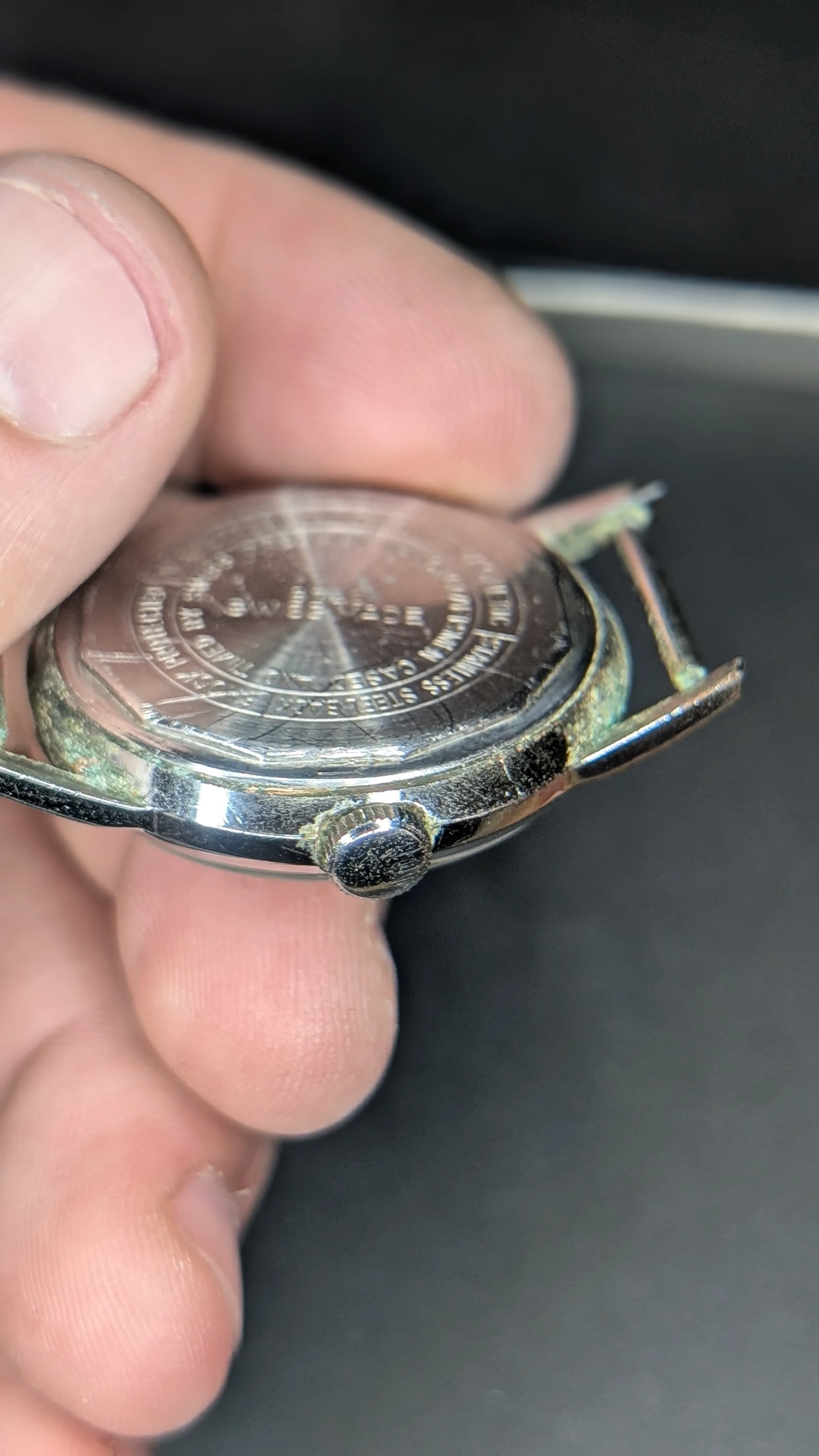

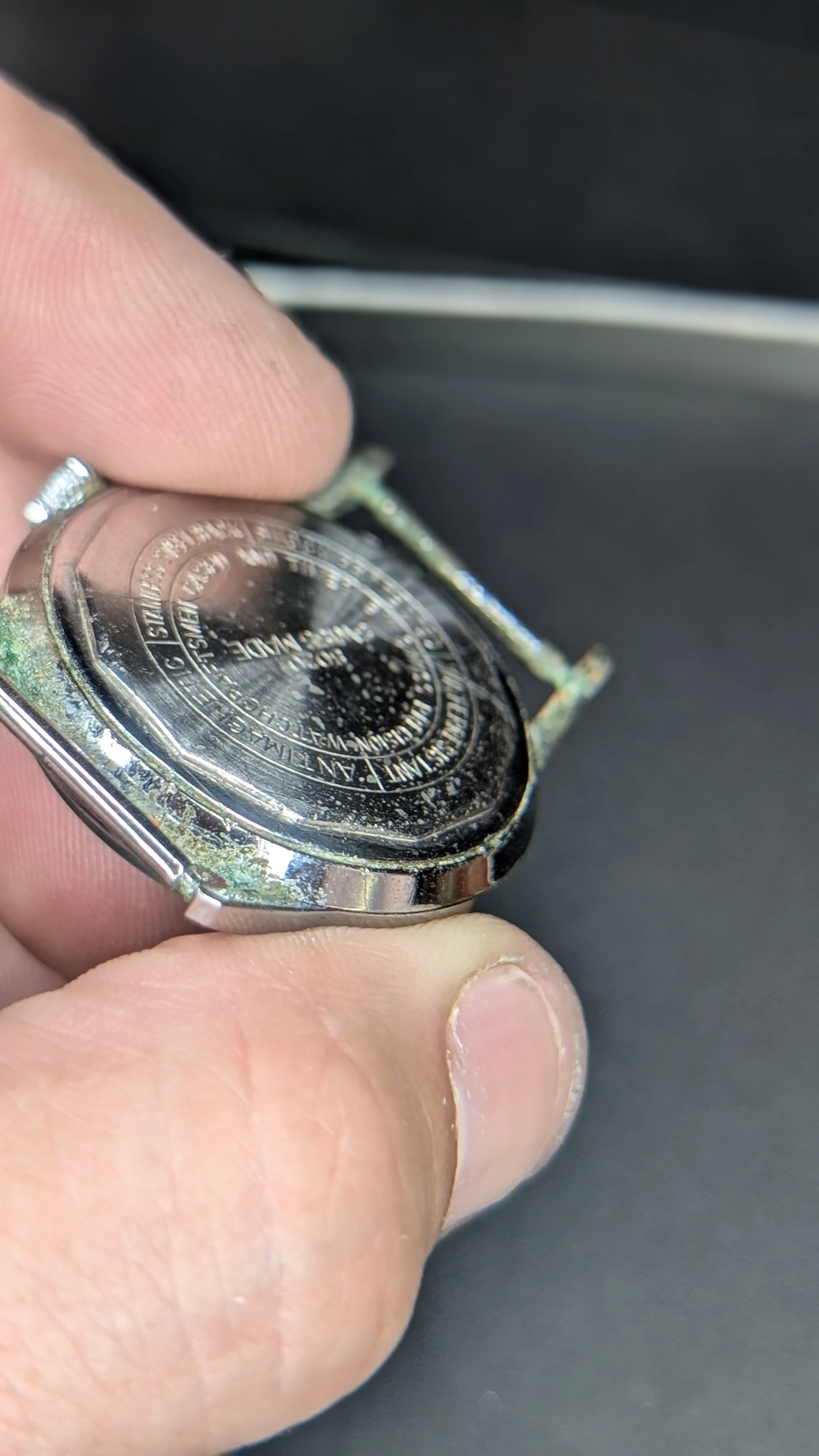

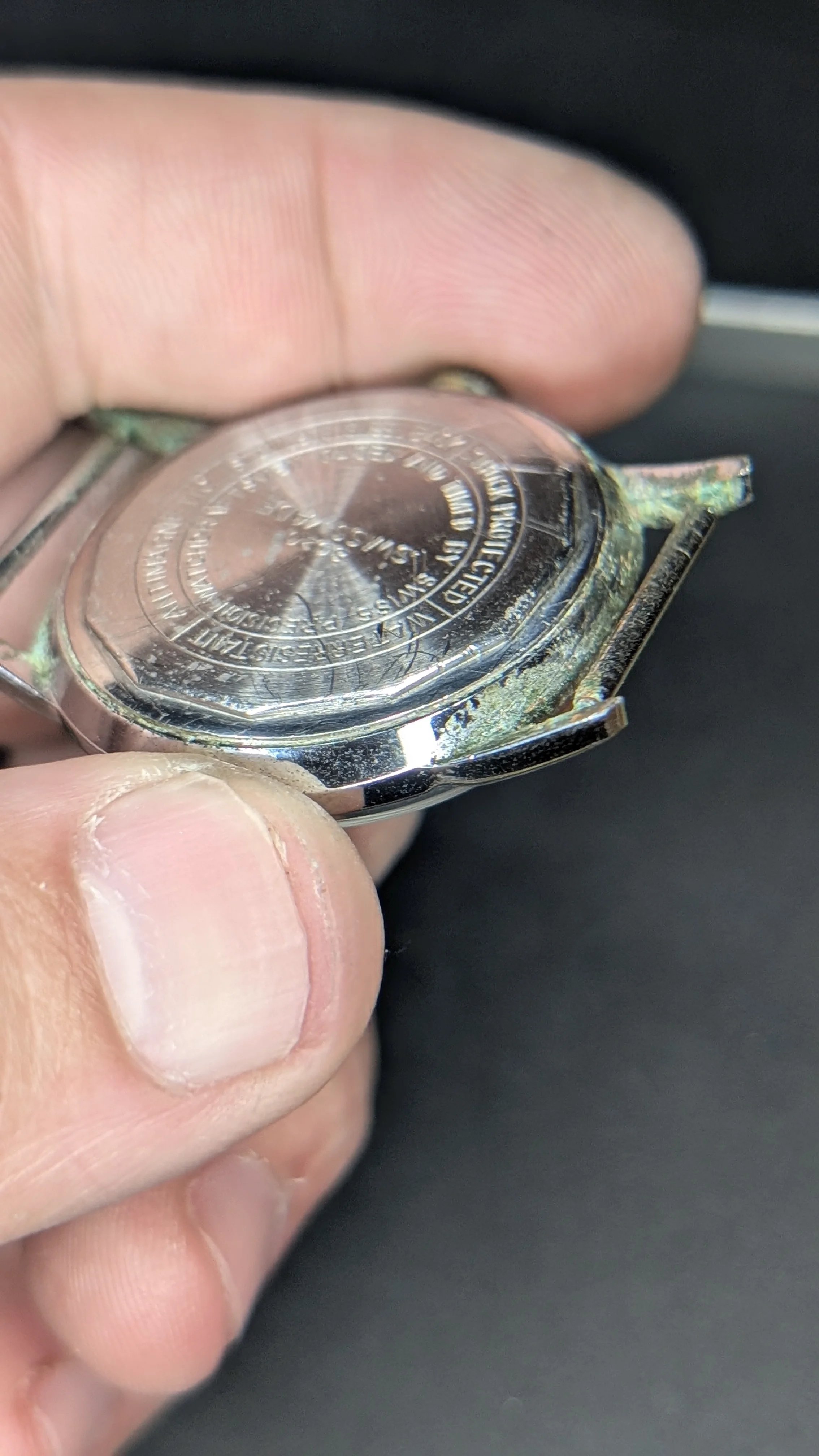

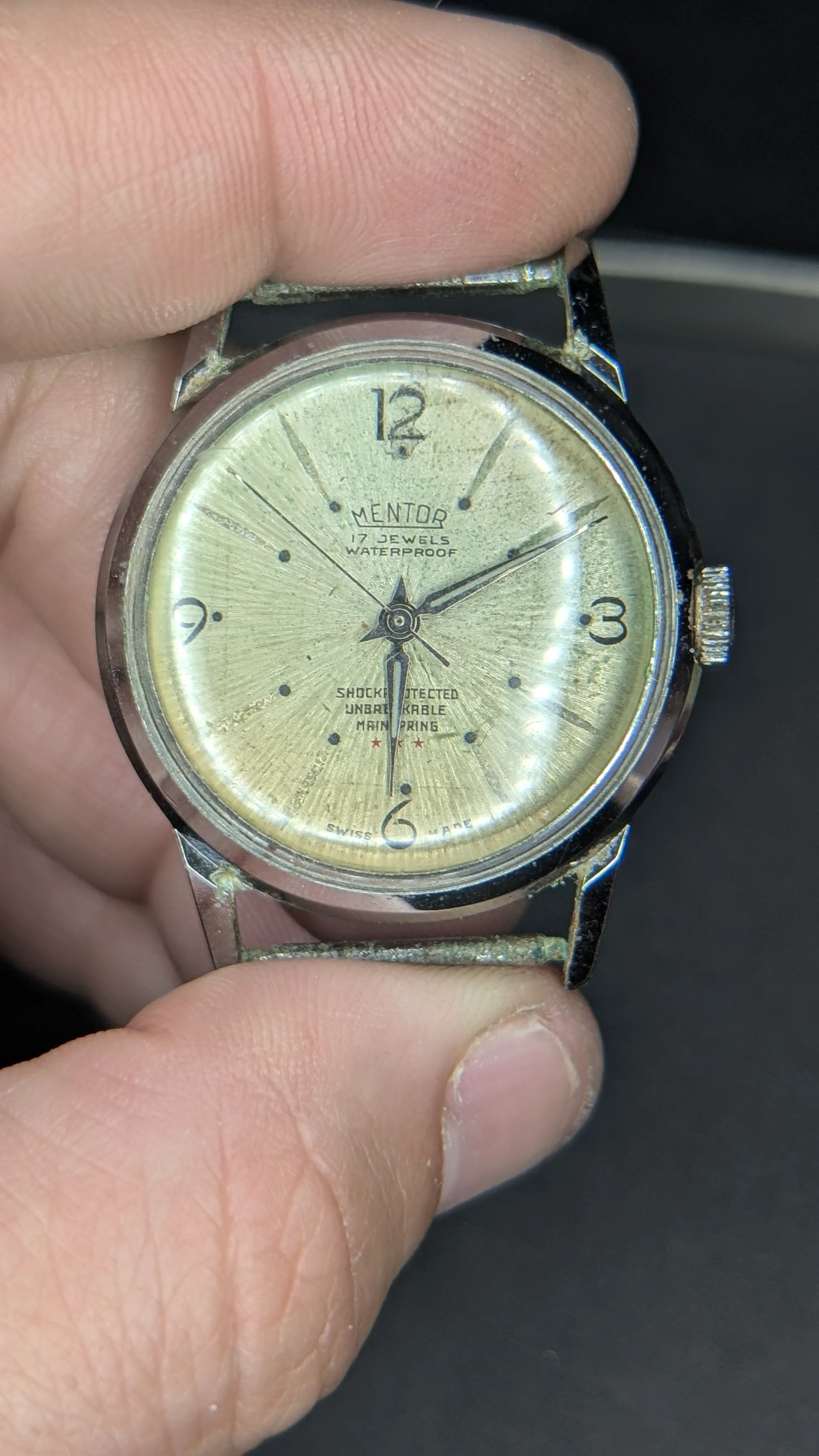

I've never heard the brand before, I just like the old look and was going to attempt to clean up and electroplate this case AFTER I got it opened. I don't think it's a pop back but I'll explore with the opener. I think I'll ultimately try the socket and super glue. Any size socket or should I try to find a large one? Thanks everyone!
PXL_20250530_162653330.PORTRAIT.ORIGINAL.webp PXL_20250530_162656383.PORTRAIT.webp PXL_20250530_162648670.PORTRAIT.ORIGINAL.webp PXL_20250530_162700865.PORTRAIT.webp

Gentle Ben
Posts
203
Likes
1,051
Awesome watch. Hope you get this resolved. I also initially thought rubber ball, but it sounds like you have tried that.

redpcar
Posts
4,200
Likes
10,033
UNLucky UNLucky
Not a horrible idea, but the lip is really thin and I'm not sure I can get a grip. I'll carefully give it a shot.
The biggest crescent wrench you have will increase the surface area. Worked for me in the past

redpcar
Posts
4,200
Likes
10,033

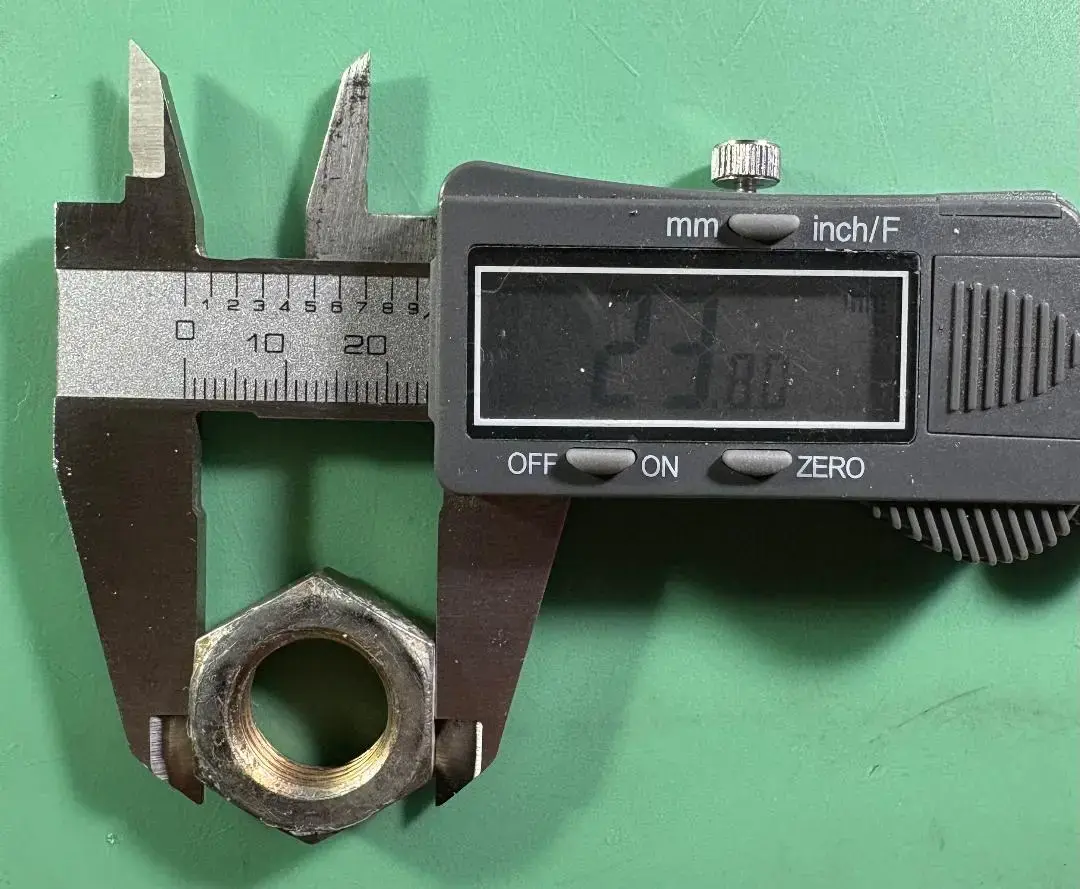

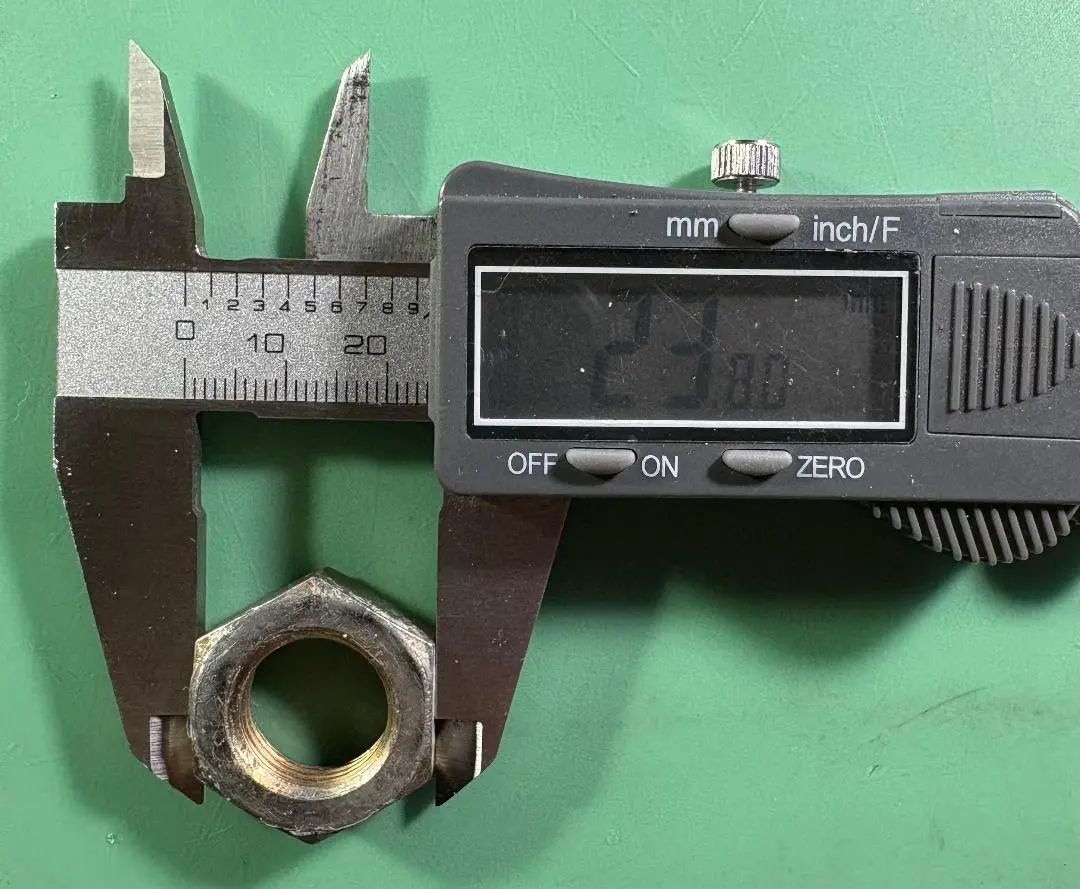

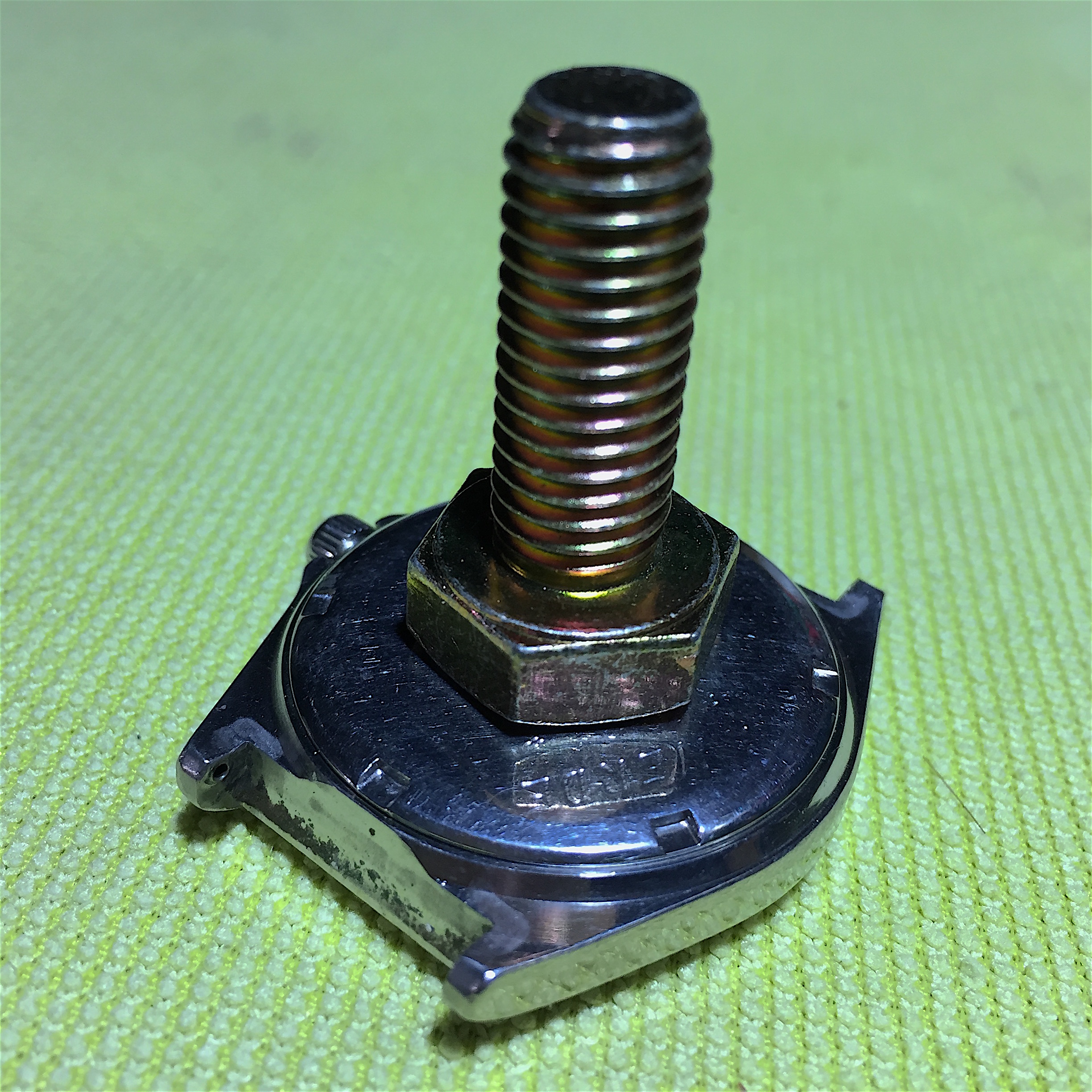

This is my "go to" nut that I use to super glue to the back. Clean the surfaces with acetone first. I soak the back/nut portion in acetone to dissolve the glue after the back is removed.


JimInOz
Posts
17,465
Likes
36,611
I just remembered.
I didn't use a hex nut, I used a bolt with the head flatenned out on a course wet&dry sheet.

https://omegaforums.net/posts/1504892/ JimInOz
JimInOz ·
Get a short bolt. Clean the head flat with wet and dry on a flat surface.
Clean the bolt and the watch case with isopropyl alcohol.
Bond the bolt to the case with a drop of superglue.
Allow to cure.
Use a spanner to remove the case.
Soak the caseback in acetone to remove the bolt.


Another time I used a flat square nut from something, had good surface area and also worked well.

size11s
Posts
752
Likes
1,288
The nut and superglue has worked for me too, with the addition of some low level heat, circa 100 degrees C, to soften a degraded gasket.

ErichKeane
Posts
1,087
Likes
1,162
If it is a consistent distance between sides, it should be easy enough to turn a socket for it out of aluminum. What is the distance between flats?

JimInOz
Posts
17,465
Likes
36,611
ErichKeane ErichKeane
If it is a consistent distance between sides, it should be easy enough to turn a socket for it out of aluminum. What is the distance between flats?
Interested in the process to do that.
(not knocking it, just like to see how it's done).

Passover
Posts
2,035
Likes
2,794
dsio dsio
That type of back is a really good candidate for the rubber ball method, it does the least amount of damage when they're really stuck too

https://www.ebay.com/itm/123622036748
Just ordered one, let's see! 😉

This website may earn commission from Ebay sales.
