Making replacement bezels/inserts, "bakelite"/acrylic & aluminium- Tissot PR516

Have hade some requests to share the method I use for producing replacement inserts in acrylic.

I am a big fan of vintage Tissot, modell PR516. A while ago I got a project diver in a watch lot bought at an auction.
It was missing the bezel and the chapter ring. I taught it would be a good practice piece.

First, lets make the bezel.



The original is made of a plastic that gets brittle with age, breaks and falls of => alot of watches missing the bezel and/or insert.
A piece of POM was turned to the right dimensions.



After that I set it up in the mill and milled the edge.



Here it is milled and with a lip turned to hold the insert.



The insert was milled using a small Roland CNC-mill. 1.25mm clear acrylic.



Testing things for fit - it works! The bezel if press fit with a "lip" that clamps around the case.

This insert was not made to mimic the original so it if a bit bigger, different fonts etc.



A chapter ring was turned fron a piece of aluminium.

It was anodized black and then the marks where laser engraved.


I have a rotary for my fiber laser, but it was not set up at the time, so this was a quick and dirty solution. Fumes from the acrylic "jig" messes up the edges of the lines a bit.


The inserts engravings where filled with paint and lume and then finally the back was painted black.

The parts ready to be installed.



And this is the final result. By no meens perfect but it made the watch wearable again!

Wow. I might have an order for you ! If you’re willing to do a very simple insert what would be the approximate cost ?

And after a while I got a PR516 Sonorous with original bezel and insert. From the pictures in the ad it looked ok, but after receiving it - sure enough - it had a cracked bezel and insert!

Well - it was time to try a new idea. The original inserts have very sharp corners and they seem to be stamped/molded.

I made a test stamp in aluminium to try the method.



Here with the original bezel.

I tried cold stamping in acrylic, polyester and some other plastics with ok results, but not perfect.

After MANY tests and different layouts I was ready to make a stamp in brass.



Laser etched layout and a couple of acrylic blanks ready for tests.



A acrylic blank is placed in the tool, it´s heated to > 120deg C and then clamped tight.



Insert after beeing pressed.

This time around I was aiming for a more correct insert and bezel, so I made a special 60deg. mill.



Now the "teeth" are at the exact same angle as the original, and the size is (if I measured corect) like the original.

The back of the inserts are then sanded flat to get a clean edge on the indexes/numbers. After this they are filled with paint/lume in the same way as the engraved version.



Different stages of the paint process.

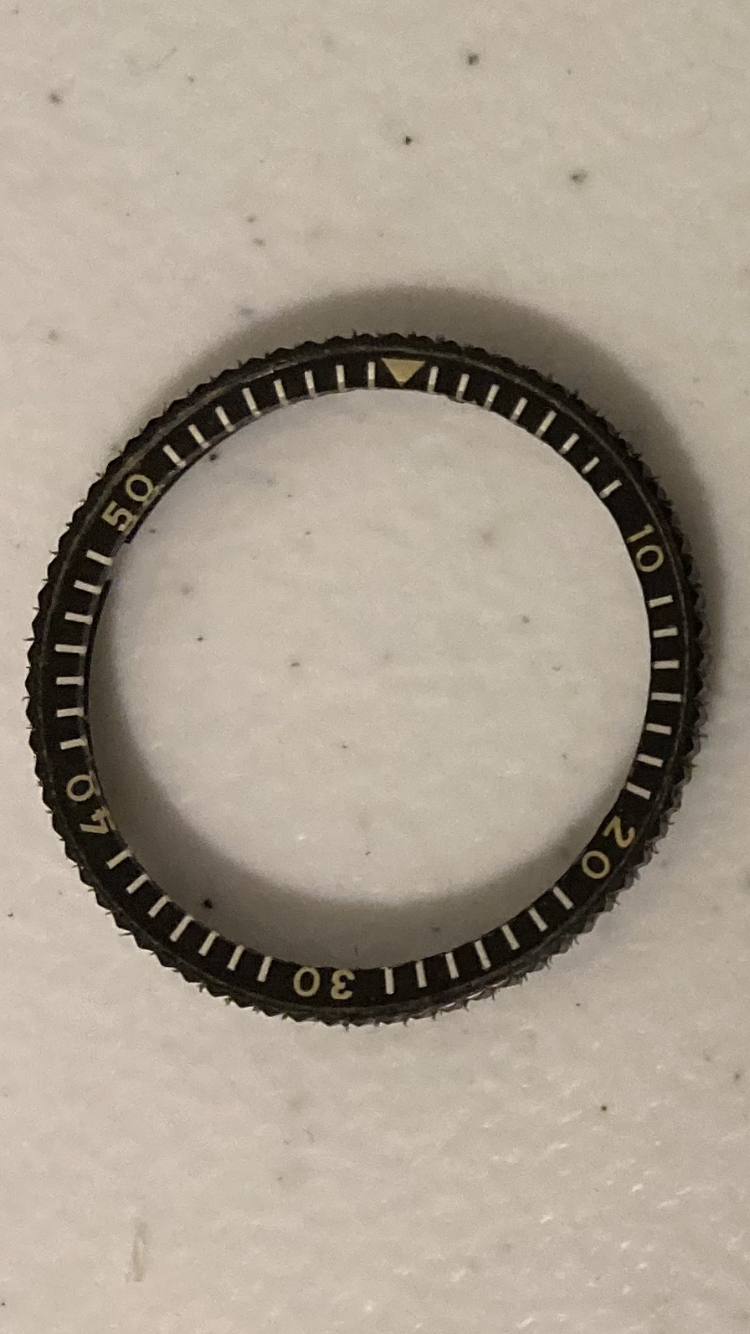

Original in the middle and replacement on the right.




And the result on the watch!

There is some "hair" on the POM bezel from machining (looks worse in the picture) - this can be polished of, but I think it will rubbed of quick when I start using the watch.

Very nice! Thank you for sharing the process👍

Impressive work. Thanks for sharing!

Thanks for share. Very interesting.
It is a great job

I can definitely appreciate your talent here! Amazing work.

Incredible. Are you at all interested in doing another? I too have a PR516 with a missing bezel and insert I would love your help with.

Holy cow. What a hero! Like others wondering if any of these bezels are for sale?

Amazing work here. Highest level fab work.
OP, I’ll send you a pm and hope you have one for sale!

Working on a new method of making the bezel without milling - if it works, it will be much faster and I'll be able to help you guys that need a new bezel as well! 😀 (manually milling takes forever!)

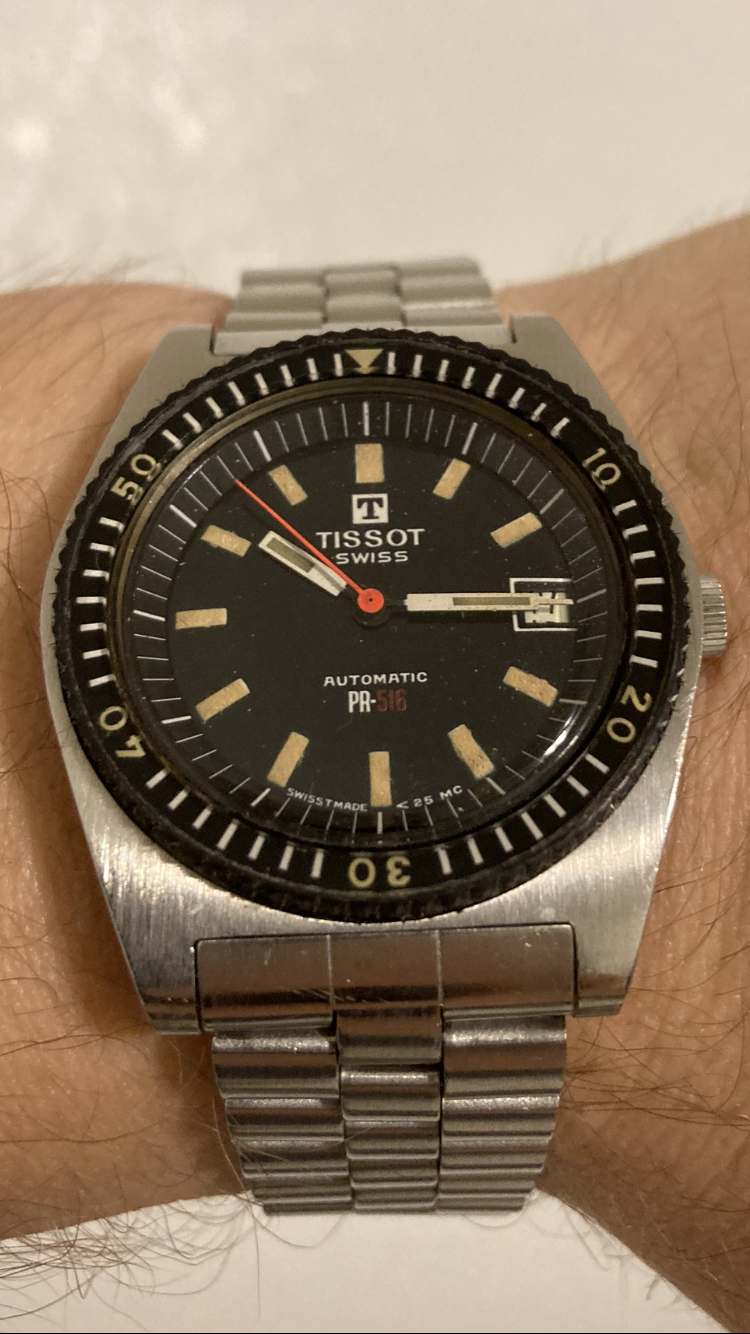

For those of you who might be on the fence about buying a bezel from Mcgyver, I can assure you they are of the highest quality and the craftsmanship is astounding. I recently purchased one and could not be happier. It’s pure art. Truly transformed the appearance of my beater quality PR-516.
