Identify Sultana Caliber Zero (0)

sleepyastronaut
Posts
963
Likes
1,251

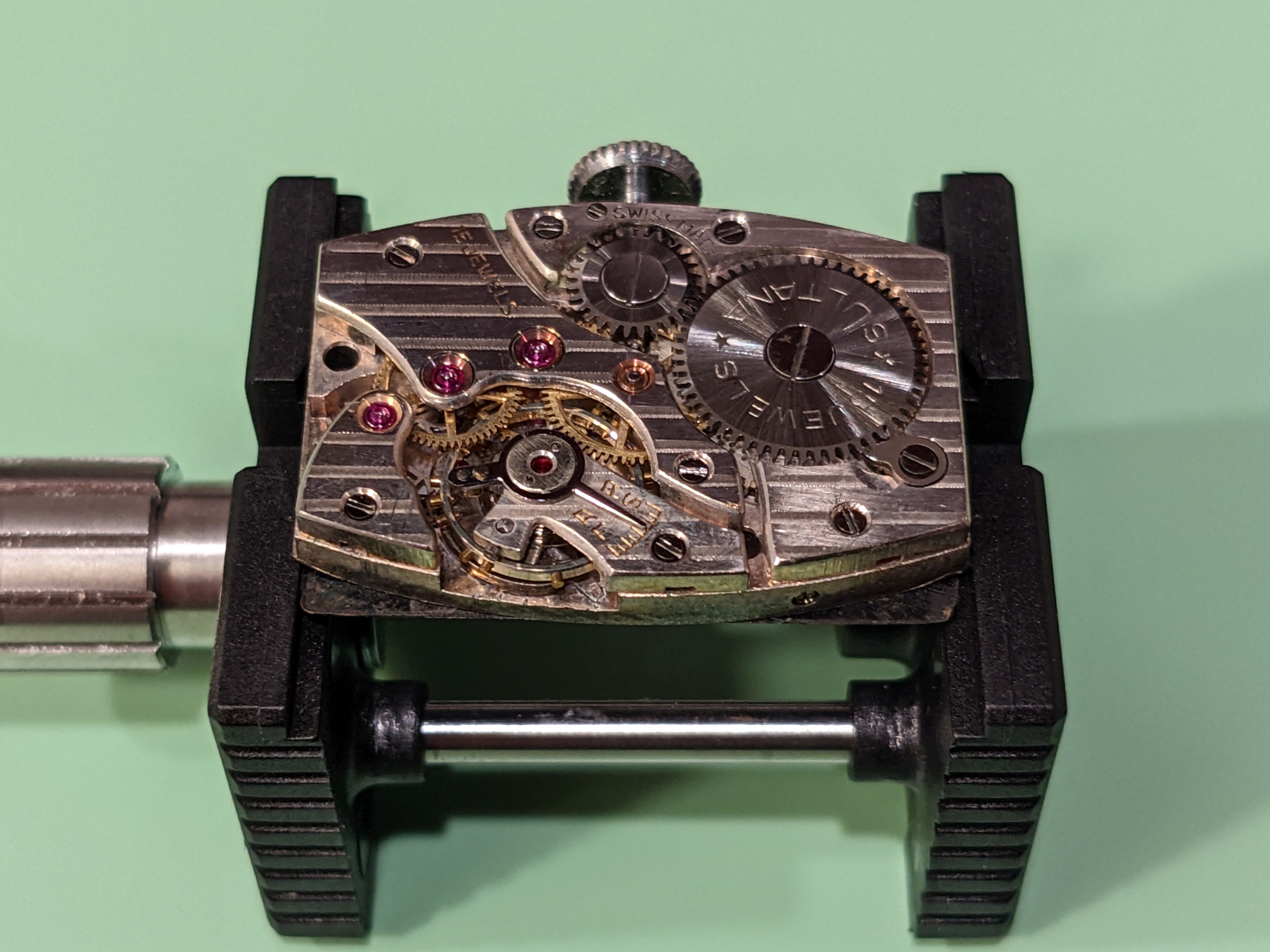

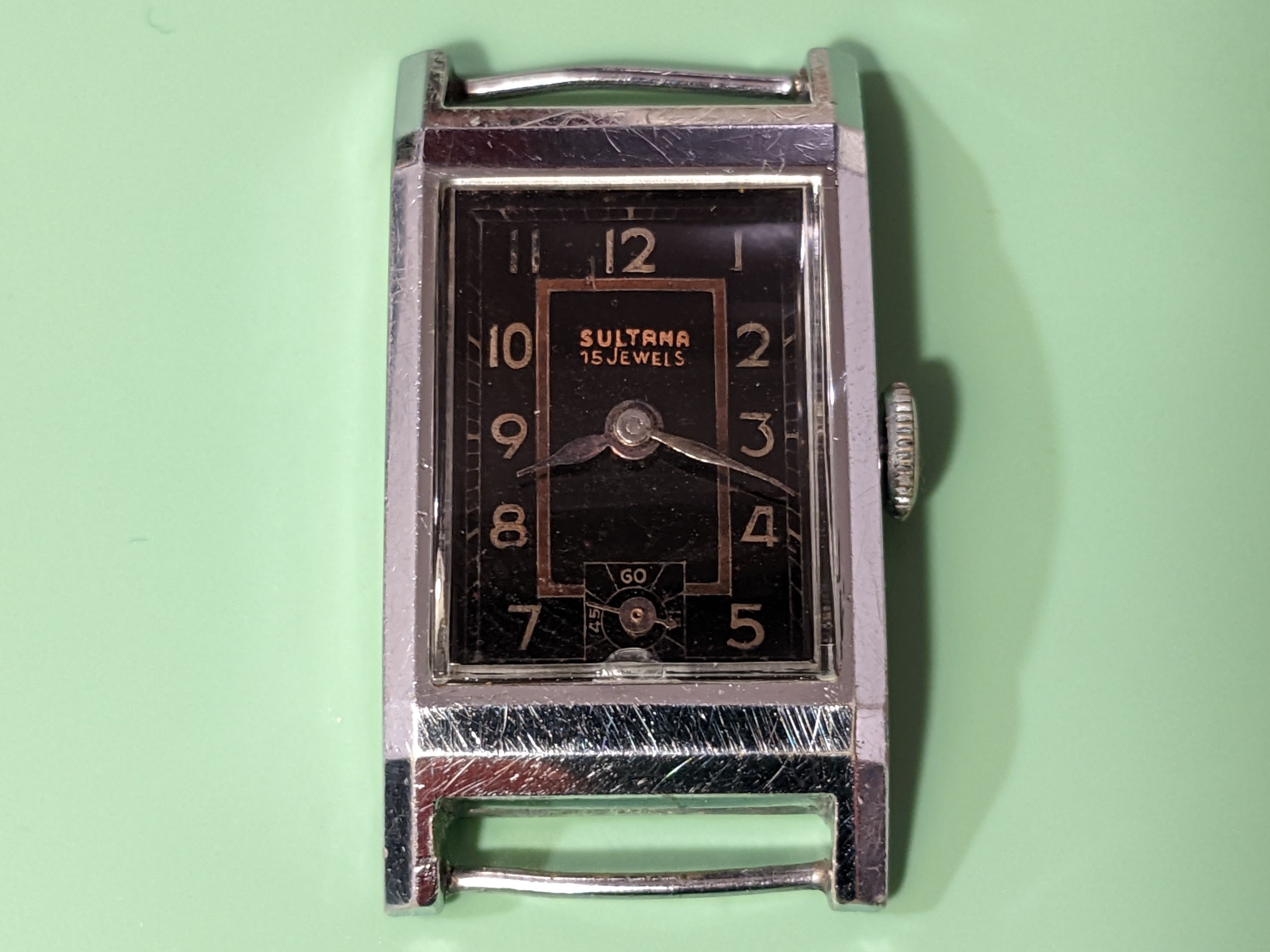

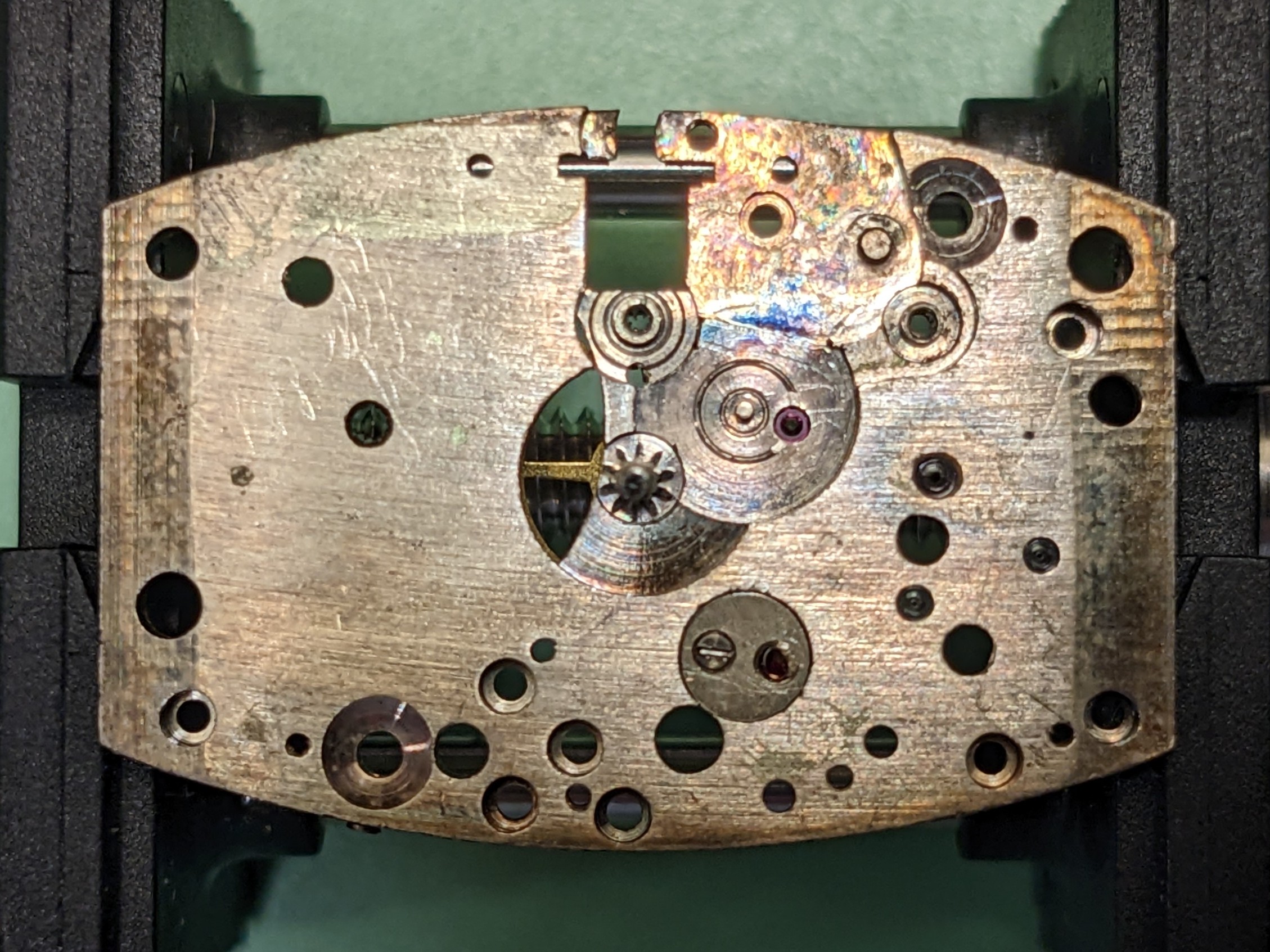

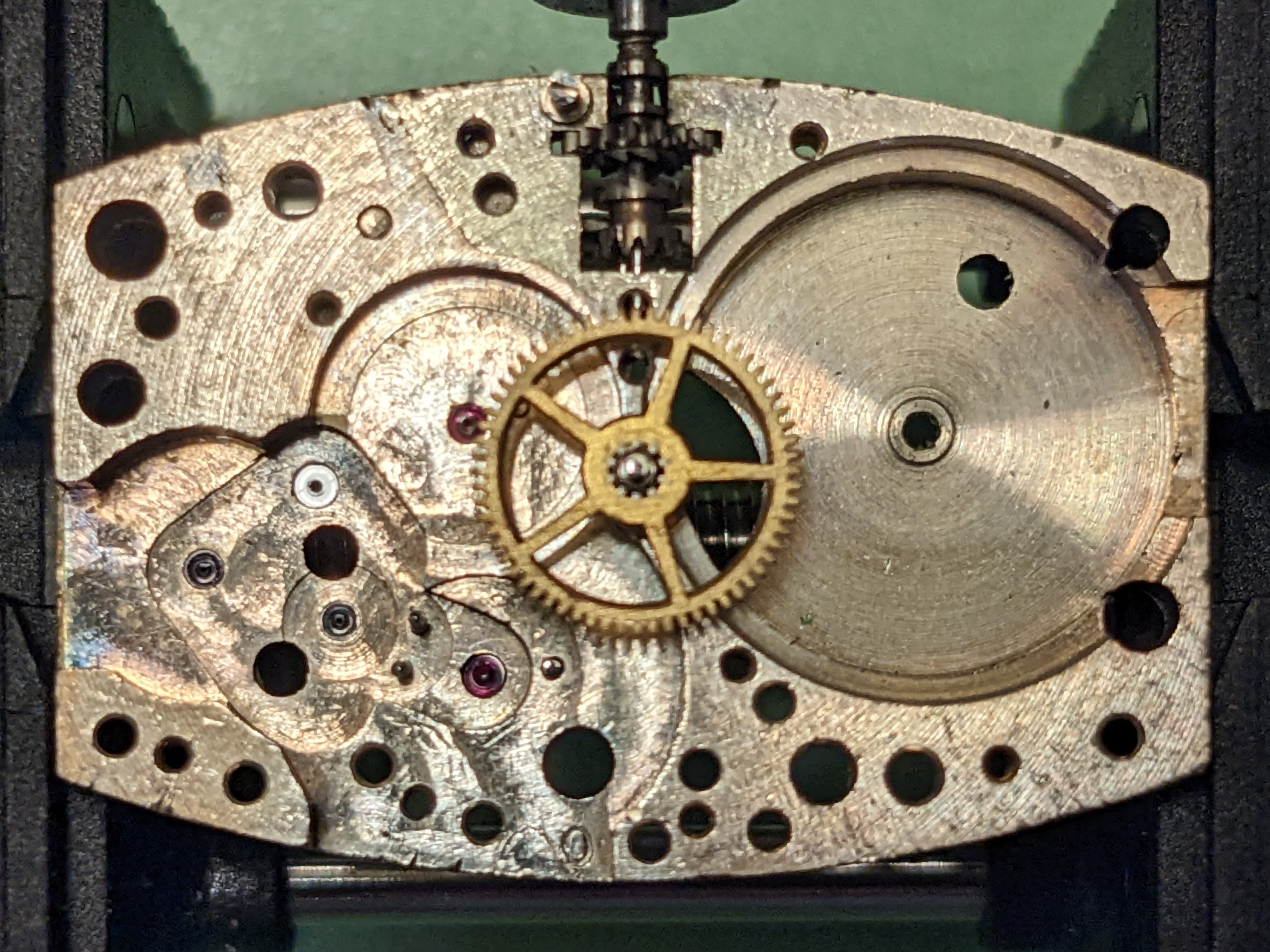

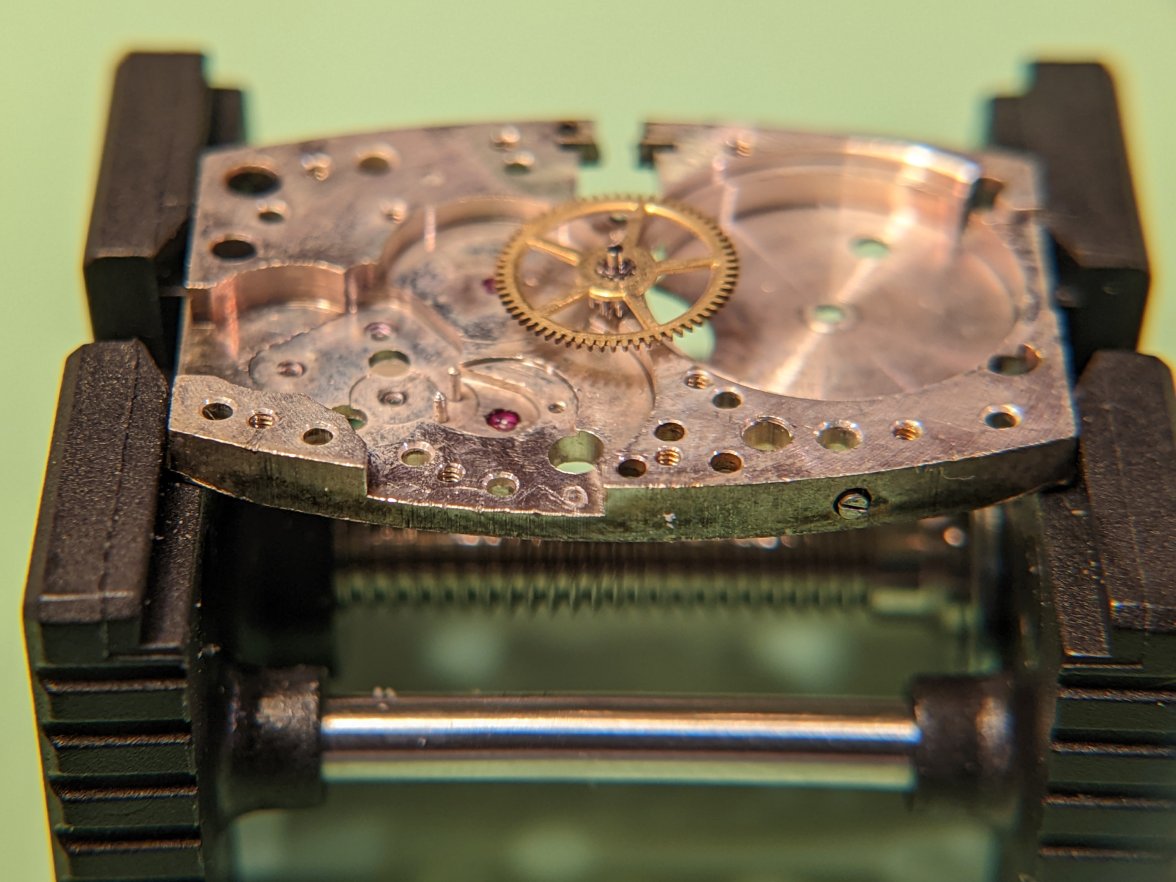

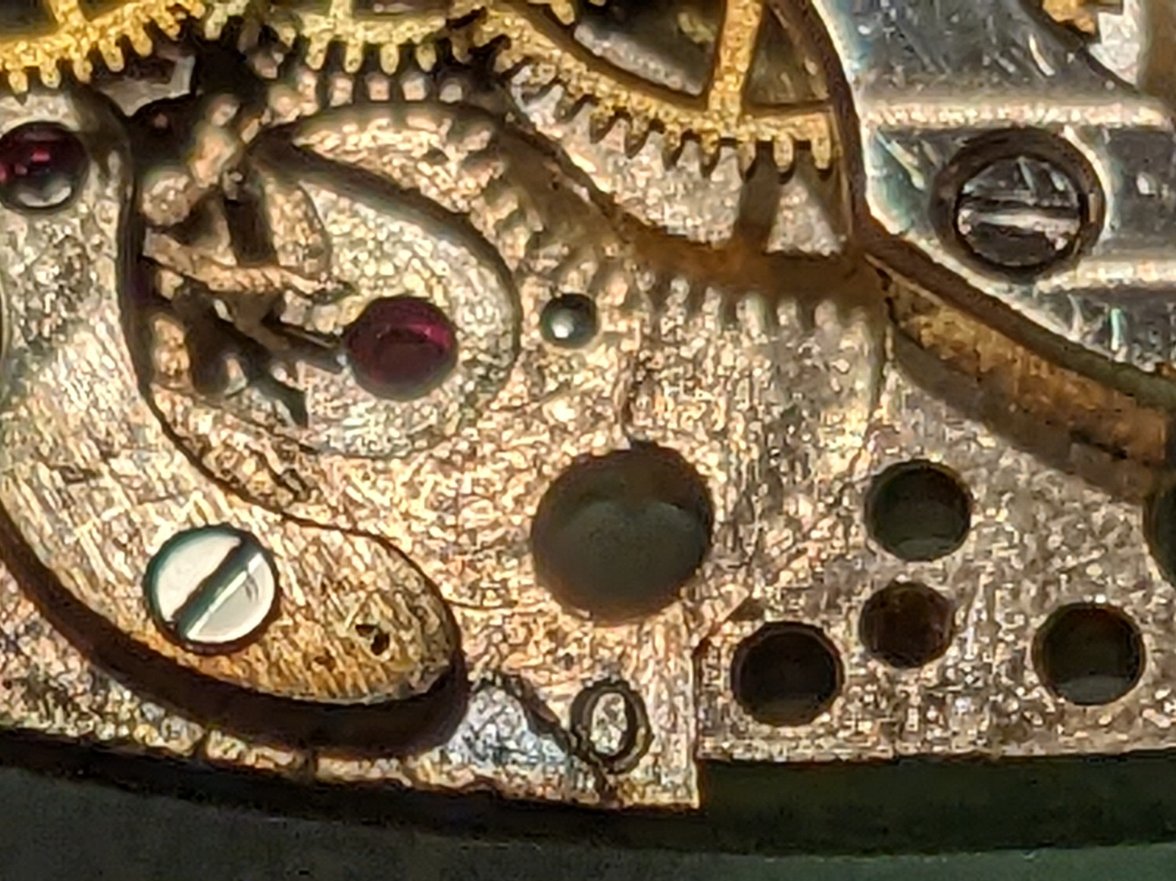

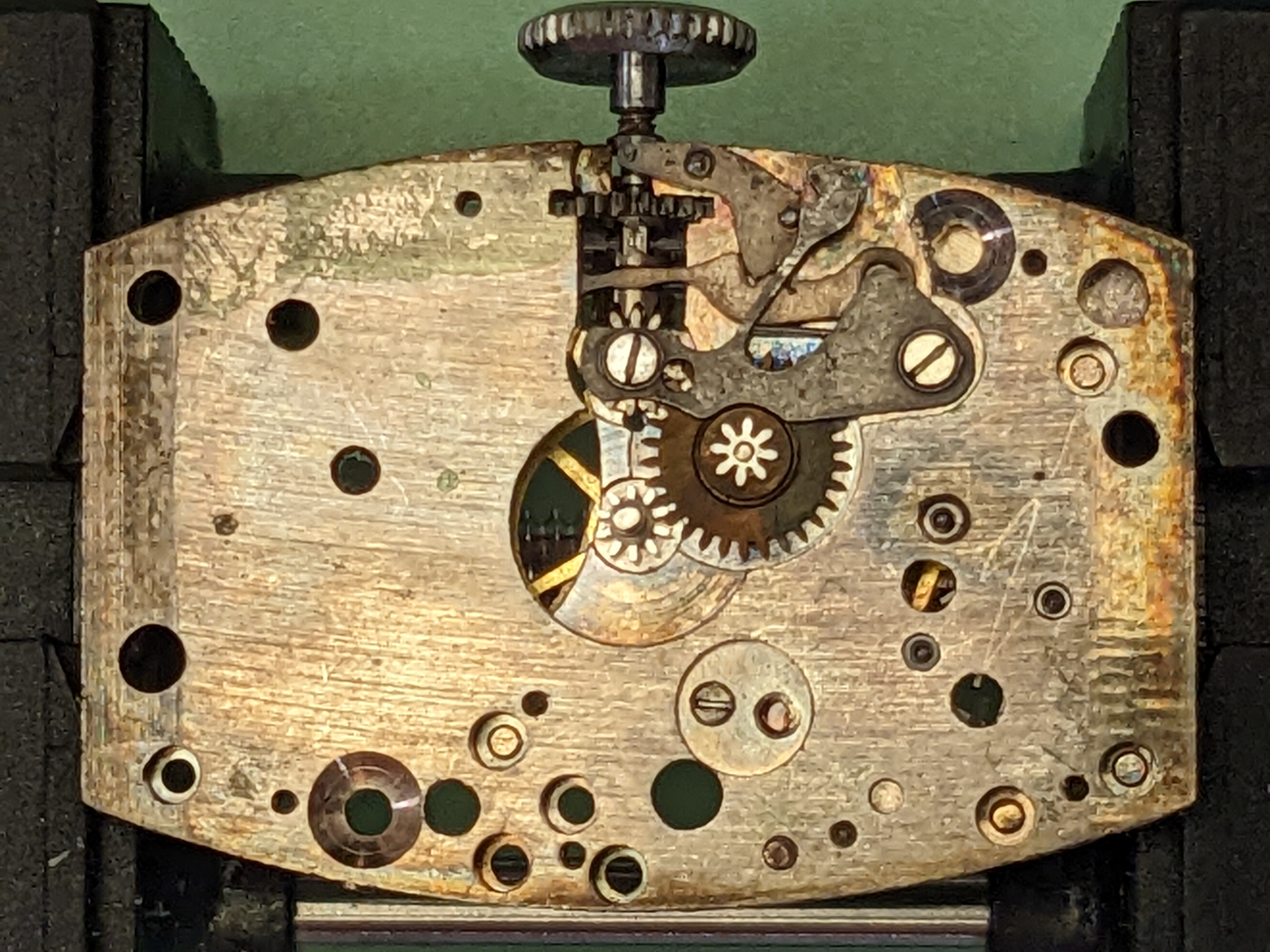

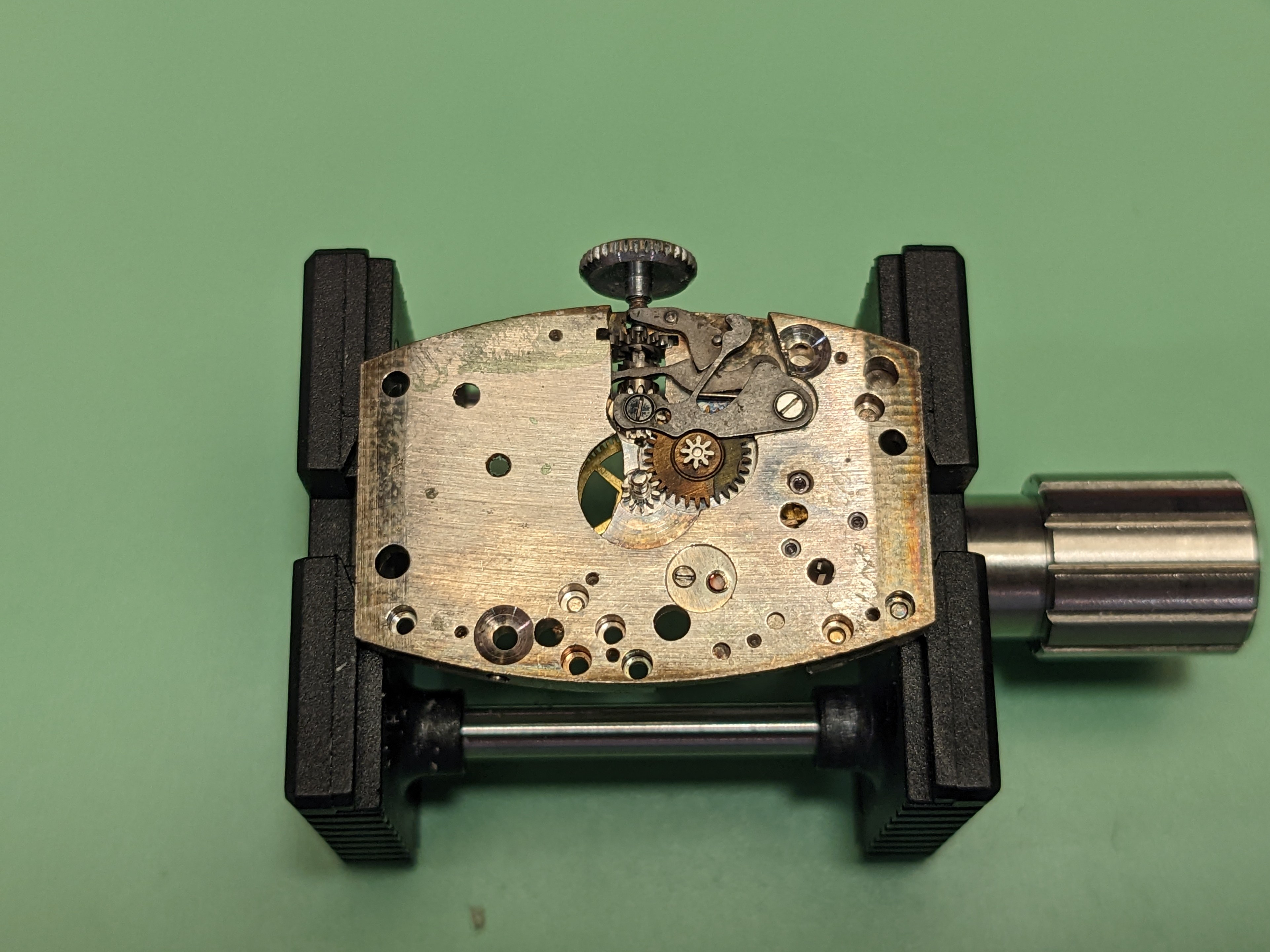

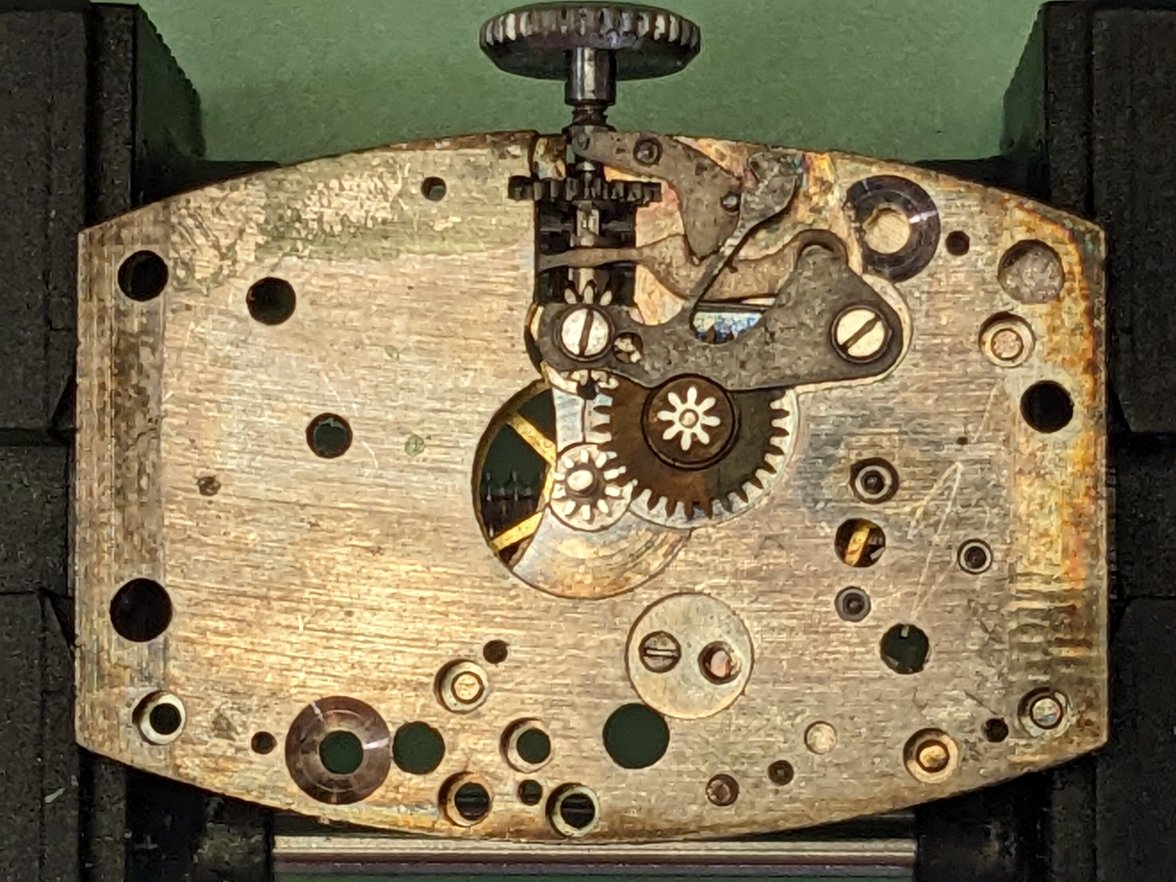

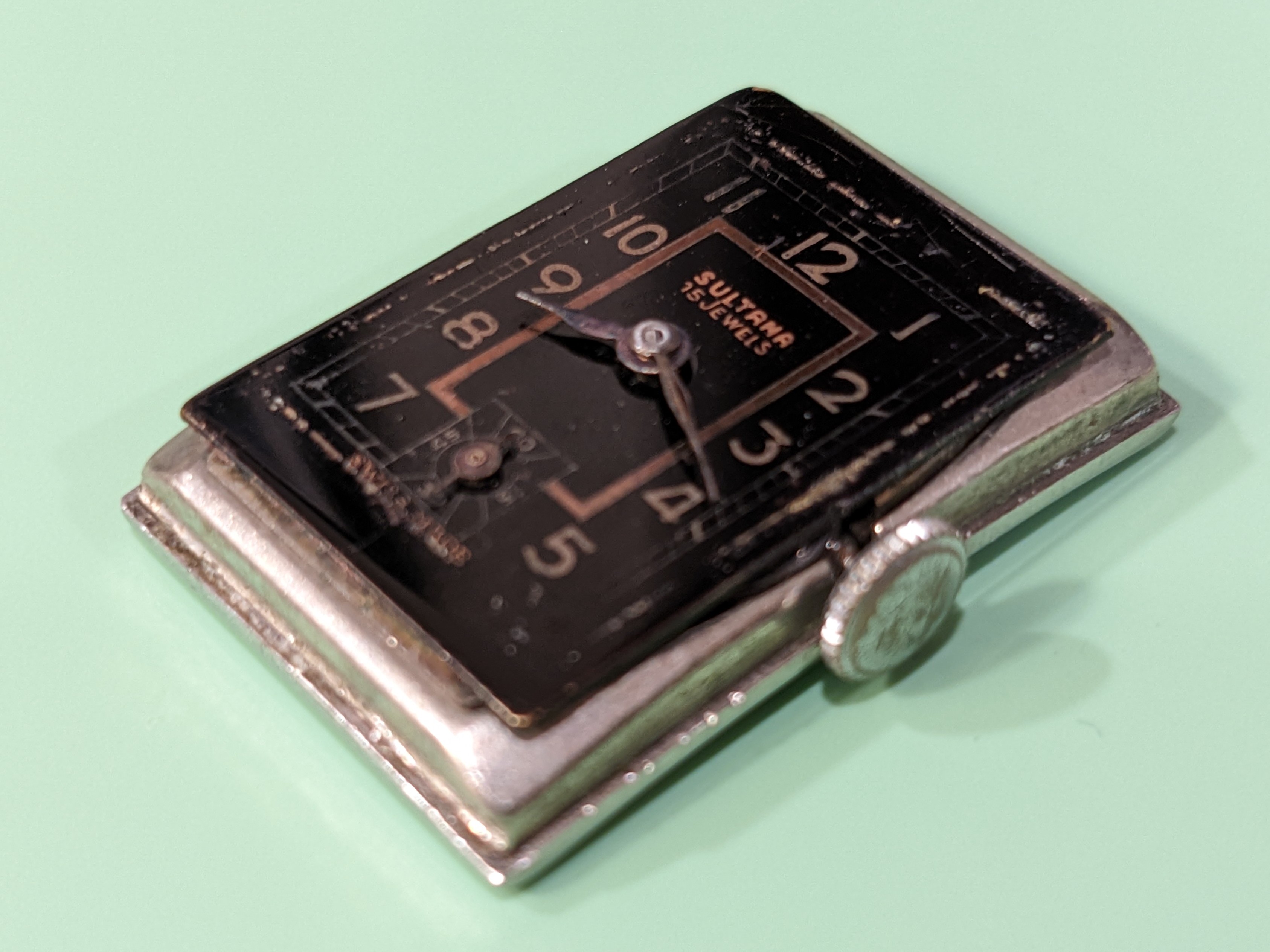

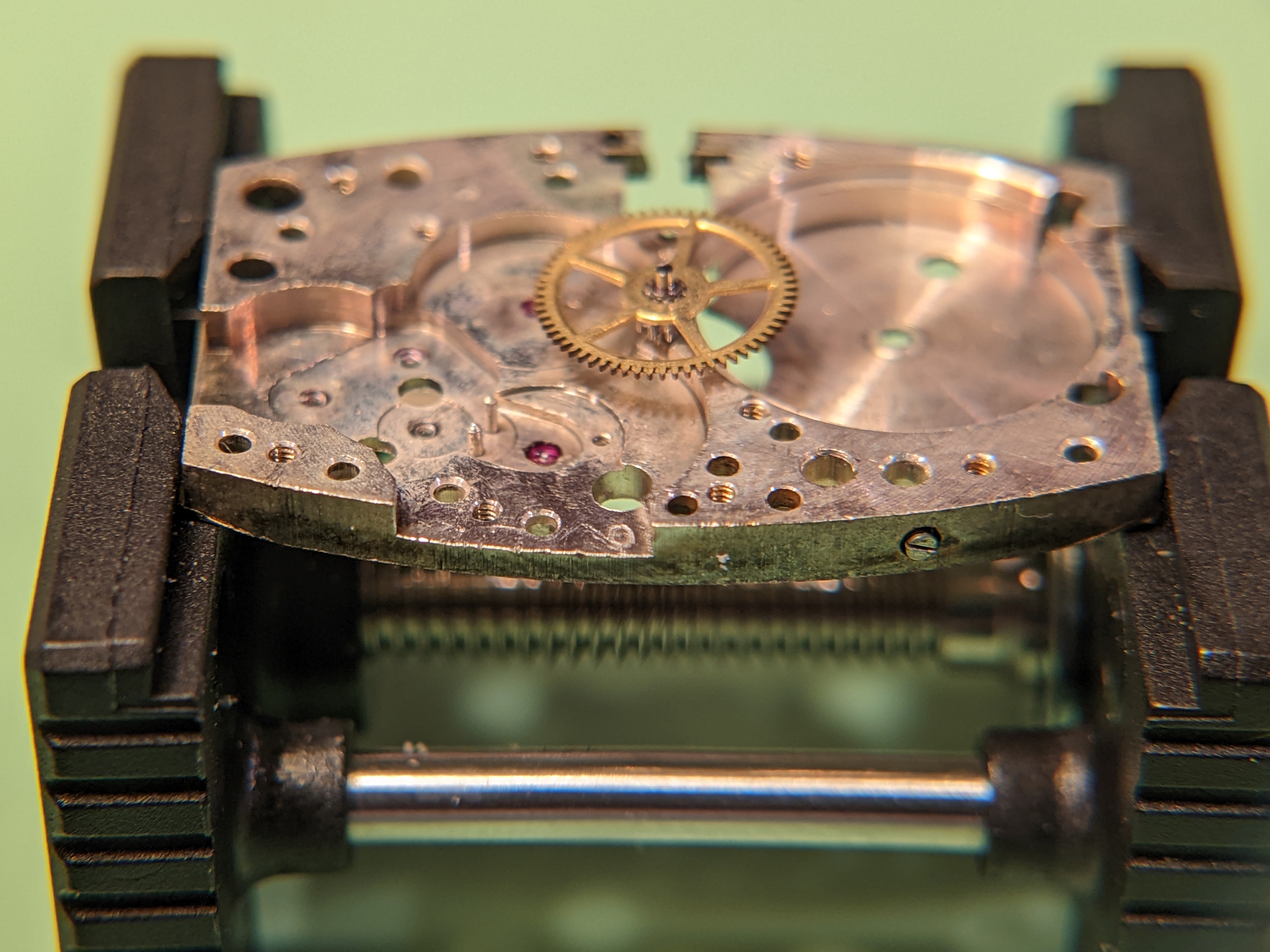

Anyone recognize the movement in this little Sultana wristwatch? The only mark on the main plate I can make out is a zero, six or nine. The more I look at it, the more it looks like a stamped zero with a tangential scratch. 15 jewels, circa 1935, the movement measures 25.2 mm x 17.4 mm.

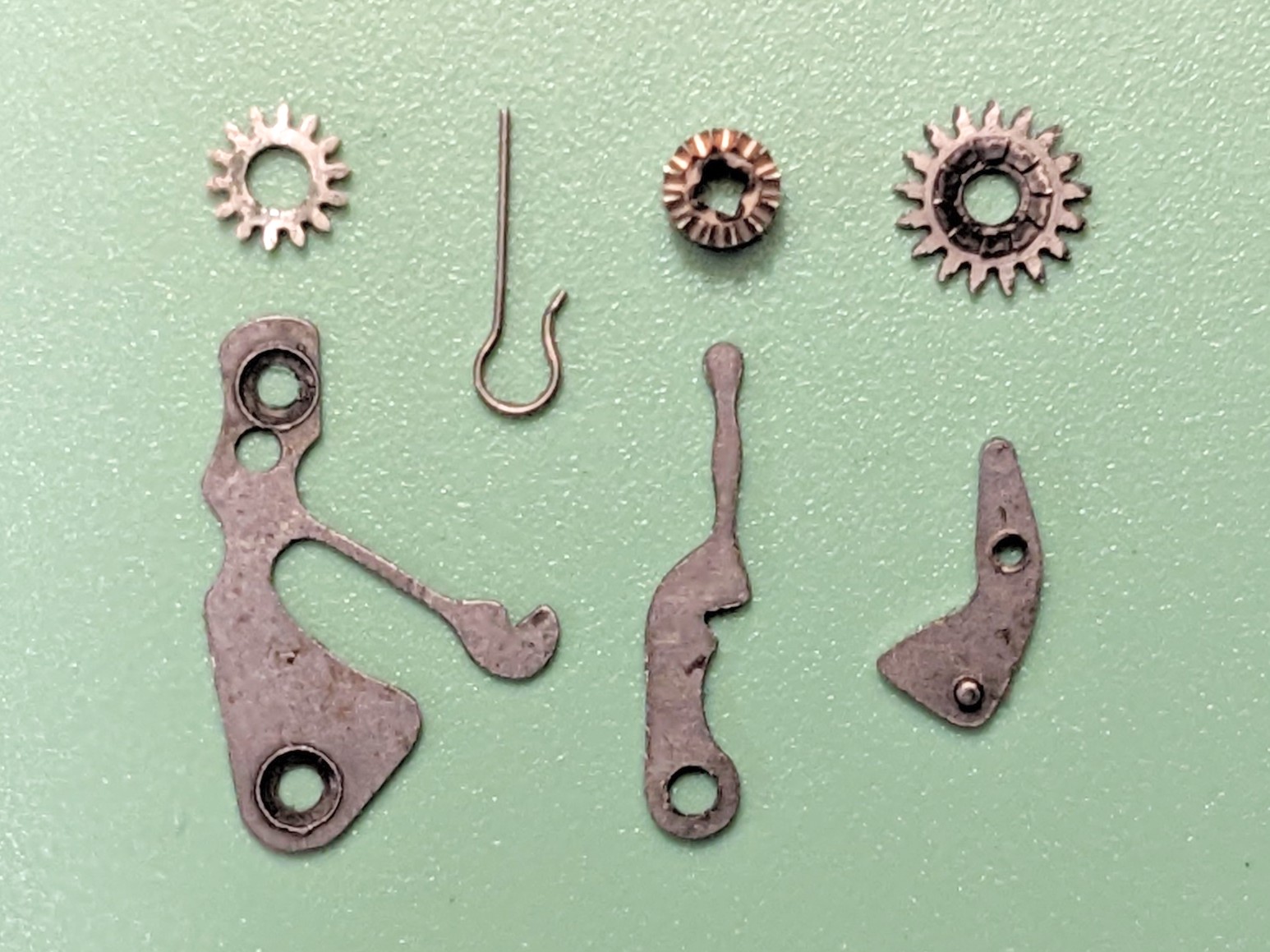

Searched through Ranfft for 7-3/4 x 11 L movements but couldn't find a match for this setting spring. My best lead from Ranfft is that Revue fastened their setting lever springs through the intermediate wheel.

Thanks in advance!

PXL_20221002_052239219.jpg PXL_20221002_053309698.jpg PXL_20221009_000943639.jpg PXL_20221008_215242242.jpg PXL_20221008_215310093.jpg PXL_20221009_013247593.jpg PXL_20221009_012055061.jpg PXL_20221008_215726298.jpg PXL_20221009_014552913.jpg
Edited:

Canuck
Posts
15,188
Likes
44,618
I checked four BestfIt fingerprint catalogs, and nothing matches.

sheepdoll
Posts
2,646
Likes
4,219
Why there is a real need for an AI watch identification system.

-j

Canuck
Posts
15,188
Likes
44,618
sheepdoll sheepdoll
Why there is a real need for an AI watch identification system.

-j

The Bestfit catalog I referred to has been around for probably 60 + years. Or, since about the time the subject watch was produced. It was and is still useful for people who want older watches repaired, and for those of us who repair them. I know, the concept of actually fixing a watch rather than turfing it, and buying another watch might seem odd to some folks!

sheepdoll
Posts
2,646
Likes
4,219
Canuck Canuck
The Bestfit catalog I referred to has been around for probably 60 + years. Or, since about the time the subject watch was produced. It was and is still useful for people who want older watches repaired, and for those of us who repair them. I know, the concept of actually fixing a watch rather than turfing it, and buying another watch might seem odd to some folks!
I downloaded the catalog recently. Which is why it would be a good place to start training an AI for parts identification. A project I have been mulling over for some time.

sleepyastronaut
Posts
963
Likes
1,251
Canuck Canuck
I checked four BestfIt fingerprint catalogs, and nothing matches.

Thank you for checking, Canuck.

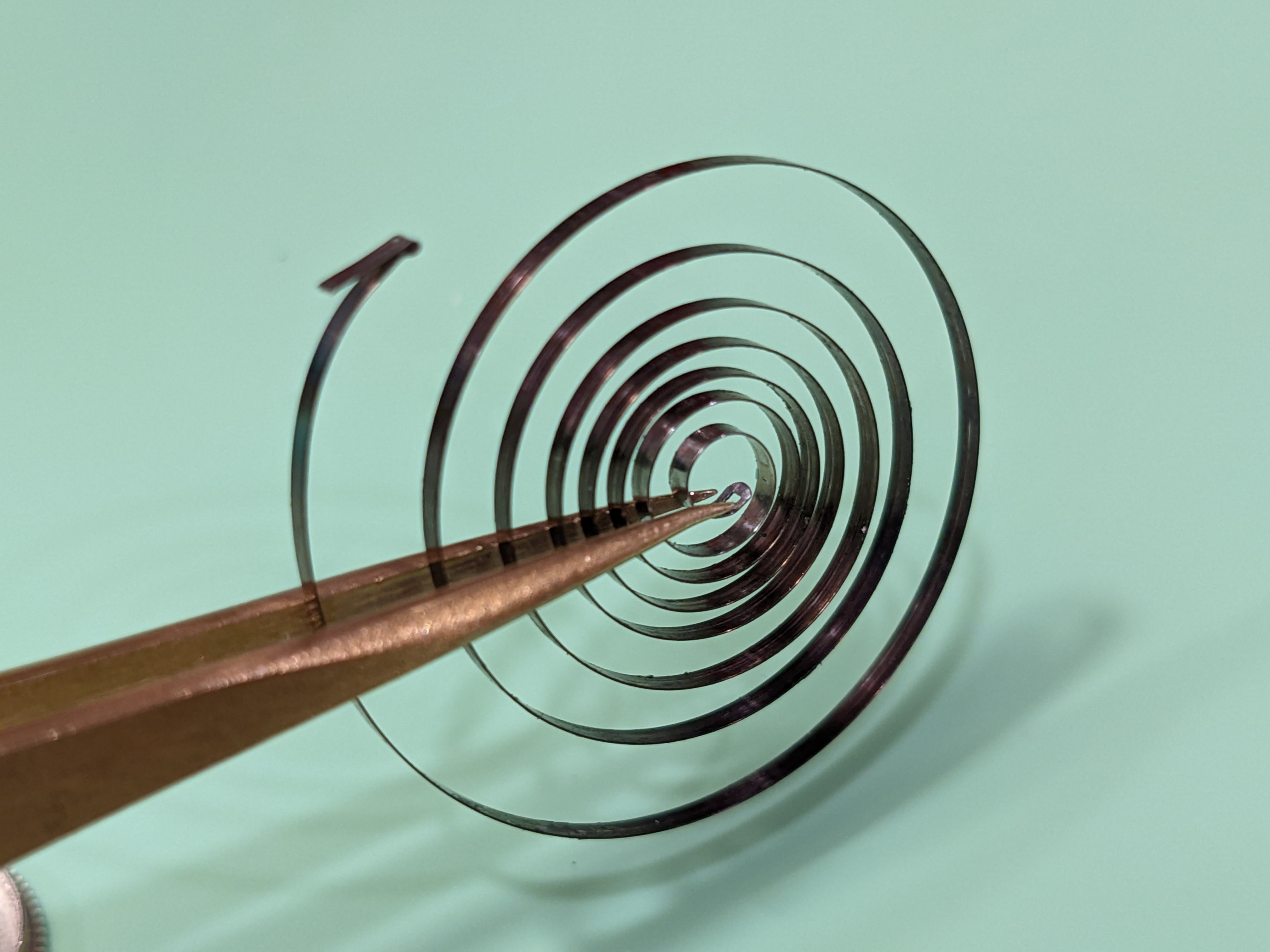

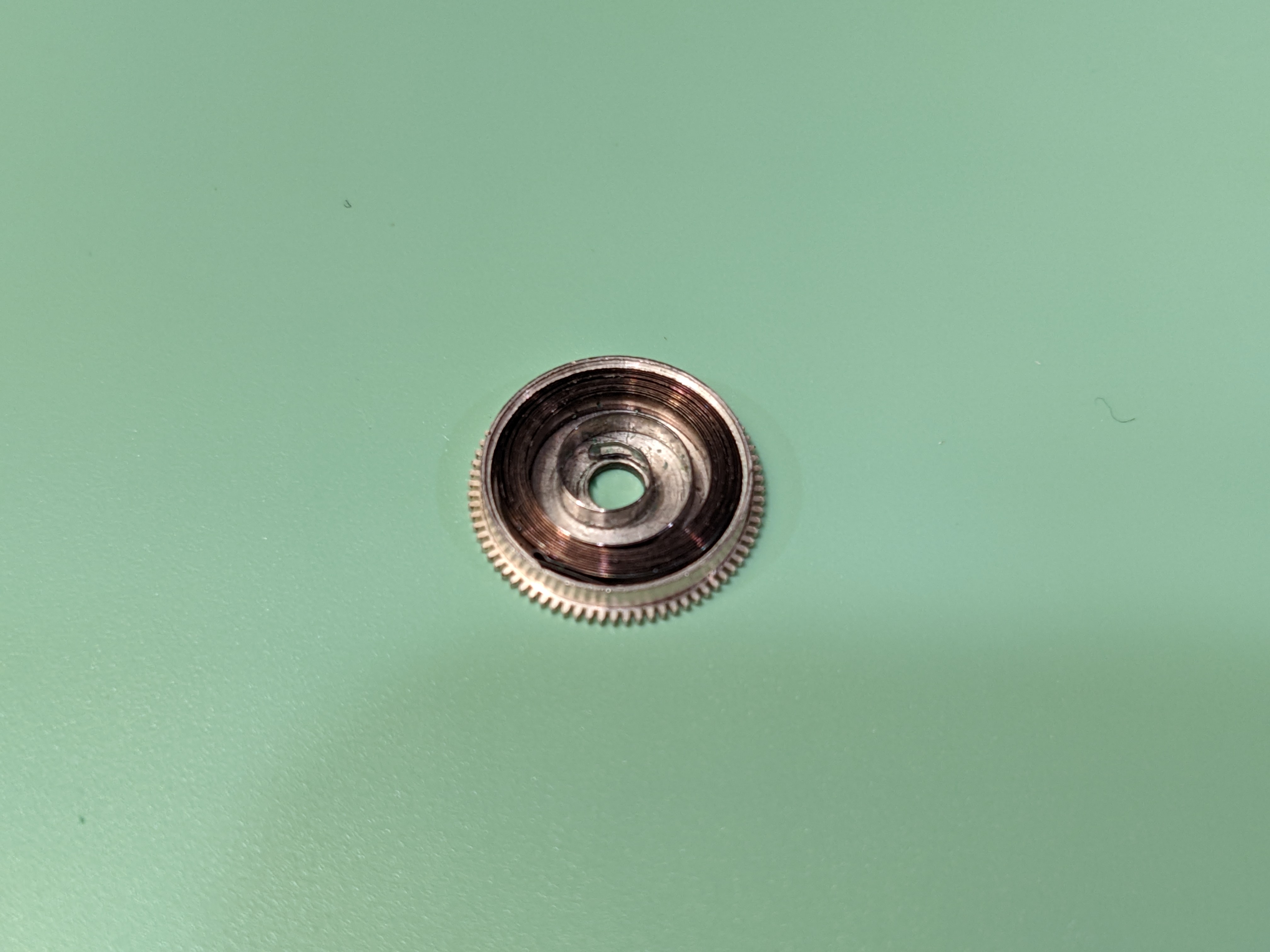

Was hoping a base caliber would give me a part number for an alloy mainspring. I'm reluctant to reinstall this carbon steel spring.

PXL_20221009_015302385.jpg PXL_20221009_015653988.jpg

sheepdoll
Posts
2,646
Likes
4,219
You should be able to measure the spring and barrel. I think there is a guide in the bestfit catalog. There are two scales used, dennison and metric. Probably easiest to use metric.
The calculation is fairly simple. A lot of watchmakers did not trust the ready fit springs, so this was sort of a basic skill.

JimInOz
Posts
17,465
Likes
36,611
I went through my Paulsons catalogue from 1950 but nothing identical. Many similar (ETA 735/757 etc) but slight differences ruled them out.

Shouldn't be too hard to measure up the original and get a GR replacement.
