Are these 088-0800 gaskets?

kaplan
Posts
2,605
Likes
3,043
They seemed like regular generic o-rings to me

I was expecting a 3D gasket that would just fit the case slot

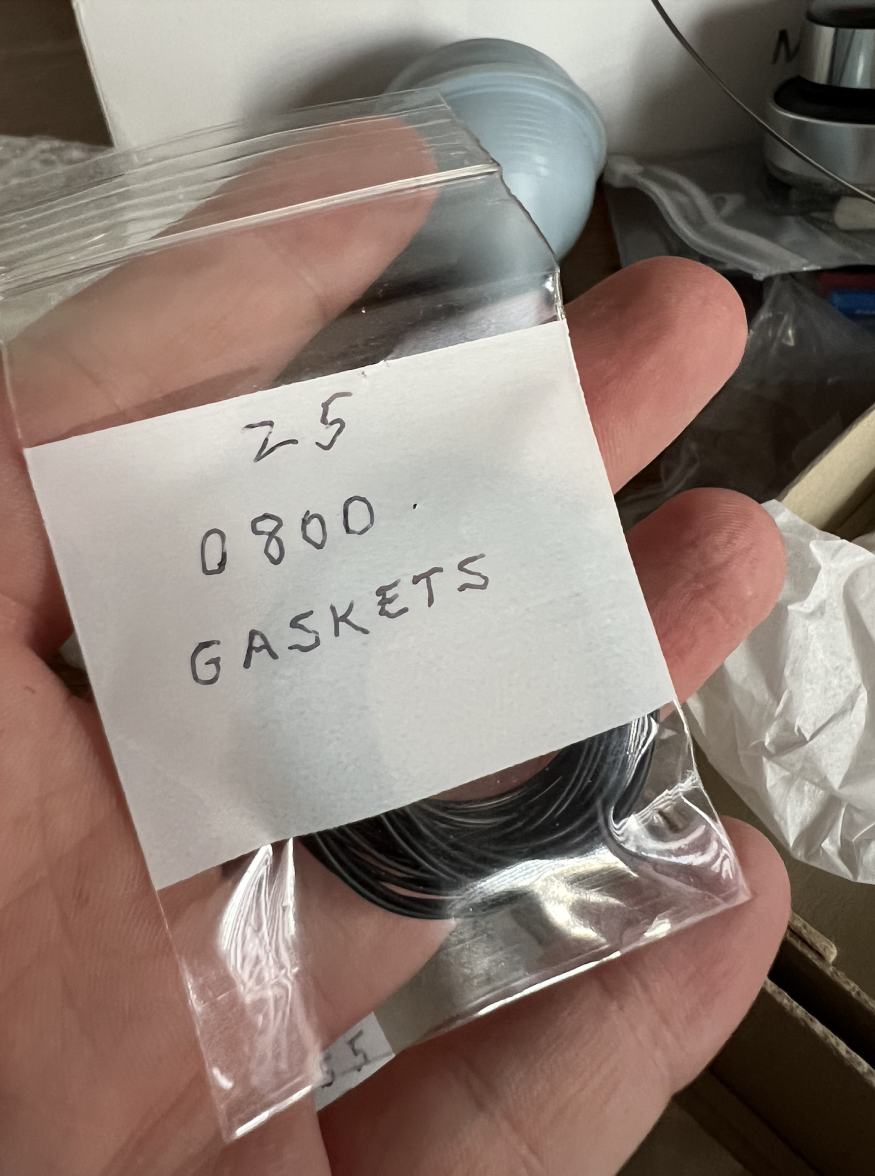

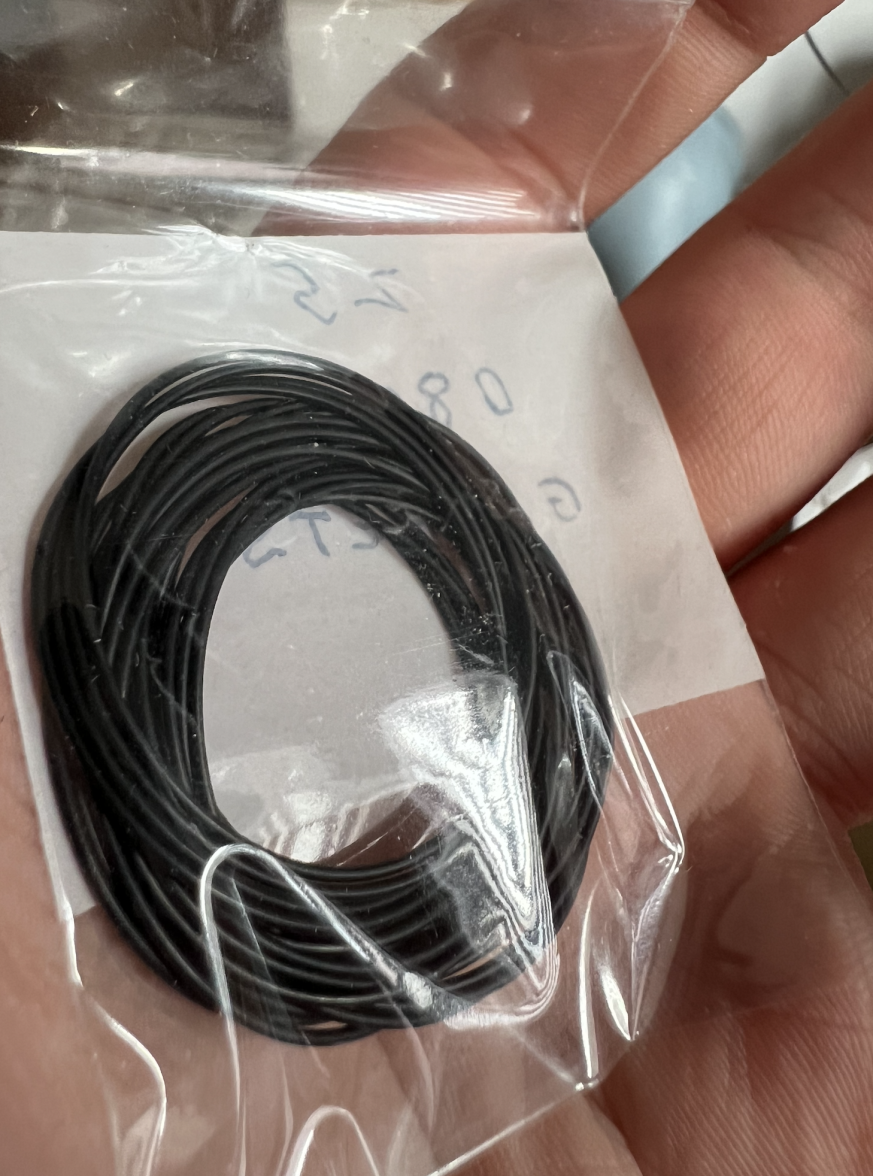

Screenshot 2023-06-18 at 19.07.22.png Screenshot 2023-06-18 at 19.07.16.png

Archer
Posts
29,115
Likes
75,243
Stating what brand and watch you are referring to might help...

Archer
Posts
29,115
Likes
75,243
kaplan kaplan
Omega 168.017

That case number comes up with "no results found" on the Omega extranet...are you sure that's the number?

kaplan
Posts
2,605
Likes
3,043
Yes it’s a very common C-Case Constellation

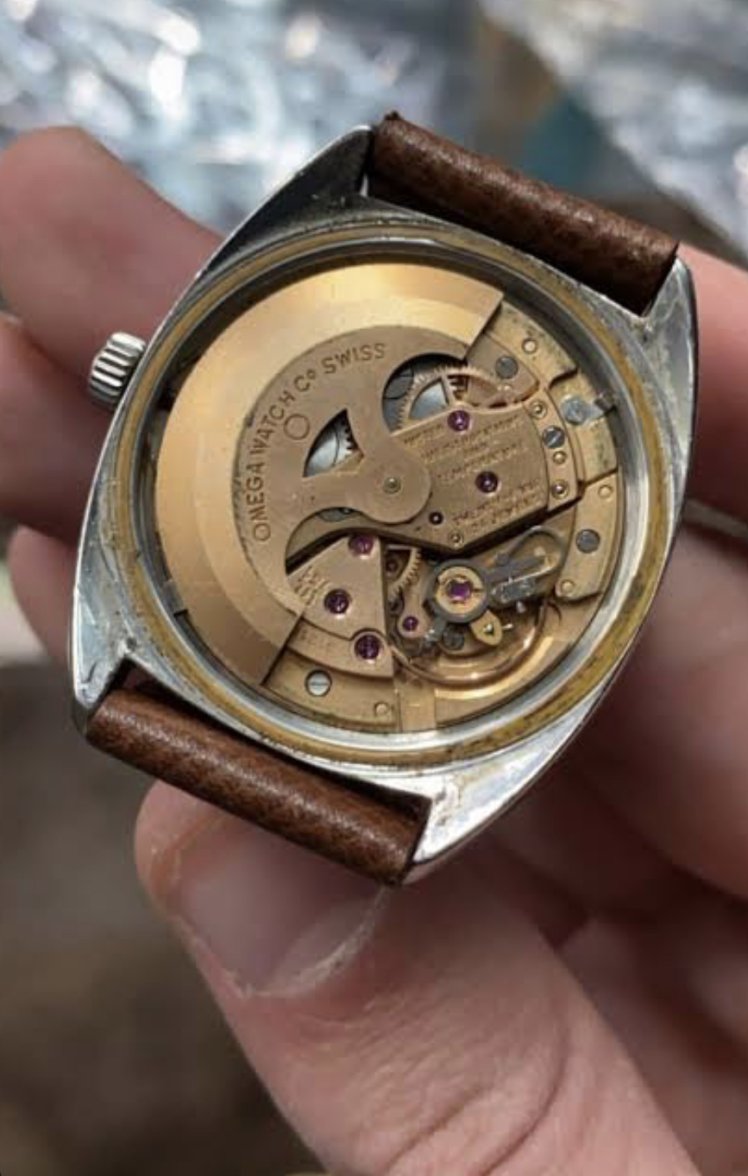

For reference vintage watches usually have these yellow gaskets, I was expecting something similar


Archer
Posts
29,115
Likes
75,243
kaplan kaplan
Yes it’s a very common C-Case Constellation

For reference vintage watches usually have these yellow gaskets, I was expecting something similar


Strange - I entered that case number 3X with no results - just did it again and now it comes up...

The yellow seal you see is a very old compressed yellow O-ring...the new ones aren't yellow, but are certainly 3D. 😉

kaplan
Posts
2,605
Likes
3,043
Thanks 😀

I always assumed they were rectangular gaskets

Archer
Posts
29,115
Likes
75,243
kaplan kaplan
Thanks 😀

I always assumed they were rectangular gaskets

Only after they have deformed.

Deafcon
Posts
195
Likes
492
I come up 088NS5081 for the part number and these dimensions:
31.60 MM OD
0.80 MM DIAMETER
SHAPE :CIRCULAR

Archer
Posts
29,115
Likes
75,243
Deafcon Deafcon
I come up 088NS5081 for the part number and these dimensions:
31.60 MM OD
0.80 MM DIAMETER
SHAPE :CIRCULAR

Yes, that's correct. Not sure what the OP has bought and where he got the number from, but if it's meant to be 088NS0800, that again comes up as "no results found" for me.

kaplan
Posts
2,605
Likes
3,043
088-0800 is the old format, 088NS5081 is the new format part number as far as I gather for the same part
